STMap_BBox

Today I’m releasing STMap_BBox, a C++ plugin for Foundry Nuke. It does the same thing as Nuke’s native STMap node, but with one additional calculation for also warping the Bounding box.

Download the plugin from my Github:
https://github.com/CreativeLyons/STMap_BBox-public/releases/latest

Instructions on installation are in the README.md file in the download, and are also briefly mentioned in the video.


Lens Distortion Workflow


This plugin is mainly to help make the STMap node more useful in the STMap Lens Distortion workflow.

All plates have lens distortion, and it’s essential in compositing to undistort the plate, and to redistort any element to match the plate distortion. We are constantly jumping between undistorted and redisorted states depending on the task: paint outs, roto, CG, 2D elements, tracking, projections, etc.

It’s fair to say that lens distortion is one of the most common things we do in our nuke scripts.

Most Tracking software, like 3D Equalizer, Syntheyes, even Nuke itself, can export a Lens distortion plugin or node to do the actual lens distortion. They also have the ability to export a Lens Distortion UV map.

A UV map is just a utility image with data that tells Nuke where to warp the image to on each pixel. Using a UV map with the STMap node yields an identical result to using the actual lens distortion node itself. You’d need to save 2 images to disk, an Undistort map, and a Redistort map. In most cases these are static, but sometimes there is an animated lens distortion map needed (full-framerange) because of lens breathing or rack focus.

Why use an STMap workflow over just using the actual lens distortion node?

There could be a few reasons:

  1. You might not have the lens distortion plugin installed. These Tracking softwares ship with their own plugins, specially designed to work with the data that the software is exporting. If you don’t have the plugin installed, you won’t be able to reproduce the distortion. But with the exported UV map / STMap workflow, you can.
  2. Easy to share. This UV map is an image format, usually 32 bit exr for uncompressed data storage. This makes a UV map more universal than say a .nk file, or a plugin file, specific to any software. In fact it’s a software agnostic way of reproducing the same distortion, with the same UV map, anywhere.
  3. Easy to swap out. It can be much easier to swap out or update one single source of true, rather than finding and swapping all the Lens Distortion nodes everywhere in your nuke script.

I’d like to focus on the last point, because this really is what makes this STMap Lens Distortion powerful, especially when paired with a tool like Adrian Pueyo’s Stamps, a hidden input system for Nuke.

When using a template, or just using another shot’s nuke script as a base, you need to swap out all the lens distortions for the correct distortion for that unique shot. Instead of manually needing find and replace each Lens Distortion node everywhere in your script. Hoping and praying that you didn’t miss any (we’ve all had it happen).

The UV map / STMap workflow allows use to have 1 source of truth for our lens distortion, and makes swapping out the old Lens Distortion for a new Lens Distortion as easy as swapping out that map. Every lens distortion is updated instantly.

Pairing this with a template workflow, and checking on “auto-reconnect” on the stamp children. You can actually save a template that will automatically sync and connect to your redistort or undistort maps in your nuke script when the template is brought in. This saves precious time and always ensures you didn’t forget to lens distort, and that you are using the shot’s very own distortion maps.

What’s the catch?

Unfortunately, Nuke’s native STMap node only distorts the Image channels, not the Bounding Box of the image. In fact, because warping the image while keeping the original bounding box would probably make it go out of bounds (stretchy pixels) nuke defaults to just using whatever the `stmap` input BBox is. This is a safe bet, because the image will never warp outside of the UV map image (because that image is telling it where to warp to) so there is no risk of the BBox being too small, and it also eliminates the need to do any extra bounding box calculation.

Because all redistort and undistort maps on plate distortion are the roughly size of the full plate format, or bigger in the case of large undistort with overscan, it means that even if your src input BBox is small, it will replace the BBox with the full format after the distortion warp.

Have a look at the difference in Bounding Box size after using the Lens Distortion node (left) and after using the equivalent STMap workflow (right).

The problem with discarding the input Bounding Box and making it the full frame format is that this creates a compounding effect on later calculations. One of the things nuke does best is optimize for only calculating what it needs to inside of that Bounding Box. If the BBox is 400×400 pixels, then nuke is only computing those 400×400 pixels on your heavy node. If you replace that with a 4k full format bounding box, even though the input area needed is really only 400×400, Nuke now has to calculate the full 3840×2160 worth of pixels.

That specific scenario would be 52x more pixels to calculate, a whopping 5,000% increase… yikes.

Since undistorting and redistorting is happening dozens of times in nuke scripts, you can imagine the effect that tossing away a small bounding box for the full format can have on the entire nuke script.

If we put a Defocus node with a very large value, 400 for example, you will see the Viewer scanline crawling to calculate the full format, every single pixel. Whereas with that same Defocus node, on a smaller area BBox input, it can calculate nearly instantly.


STMap_BBox

Preserving the tight Bounding Box after the distortion is exactly what STMap_BBox was made to solve.

I could not use a blinkscript node because Blinkscript nodes do not touch the BBox, instead I needed to Recreate the STMap node, and add in the additional BBox calculation.

How it works:

The STMap_BBox node samples samples the 4 corners of the source BBox, as well as several points along the edges for irregular shaped warps where bowing of the center of the edge may go wider than the corners.

It then uses the UV Map input to calculate where those points end up after the warp. It then adjusts the BBox to cover the max warp along each edge and draws a final resolved BBox, encompassing the entire warp area. There is also a padding of +2 pixels for safety.


Additional Knobs to know

The STMap BBox has the identical settings to Nuke’s native STMap node, but with a few extra settings for BBox control.

  • Adjust BBox – Adds additional padding to the BBox if needed
  • Intersect Checkbox – Enables the additional BBox calculation. Disabling will skip the BBox calculation, essentially making this Node back into the native STMap node in nuke.
  • Limit BBox to – Allows you to choose the maximum size the BBox is allowed to grow until.

Here is a visualization of the different options for Limiting the Max BBox size to (click to view full size):

  • Union BBox – (Default) Combined maximum of src and stmap input BBoxes
  • STMap BBox – stmap input BBox
  • Src BBox – src input BBox
  • Format – the format
  • Overscan – the format + an Overscan Scale amount, controlled by the Overscan Scale slider

The Overscan Scale knob is default to 1.2, which is the same as if you were to take a Transform node and scale the image up by 1.2 from it’s center. This is useful for undistort.

The Overscan setting is most useful if you have a massive rotoshape, whole bounding box is way bigger than the format or stmap input and you wish to limit it to the format + some overscan padding relative to the format size.


Limitations

The best use-case for the STMap_BBox is static lens distortion warping.

Nuke is able to cache the static frame UVMap and use that to calculate the warp of the input BBox on each frame. It is fast, efficient, and stable.

Where the node runs into trouble is actively changing, high frequency, large distance warps, that are changing every frame.

For my tests, I used an animating noise pattern to heavily distort the image on each frame.

The node runs into trouble because Nuke has to “find” the points on along the BBox each frame, and the larger the distance of the warp, the more time it takes to search and find where the points have gone. This can eat up Nuke’s memory and even cause a crash.

If you need to do a warp like this, I would use the native STMap node that never bothers with this calculation or simply uncheck the “intersect” option in the STMap_BBox to skip the BBox calculation.

I would stick to Lens Distortion scenarios. Animated lens distortion maps (full framerange) should also be fine to use.

It’s more about the large-distance warping and changing every frame that seems to eat up RAM. Lens Distortion warps usually have a pretty limited warp radius and thus the node is easily able to find where the point has warped to by looking at a smaller radius instead of searching the entire format.


Difference between C++ Plugins and Gizmos or Groups

Please remember, this is a C++ Plugin Node, not a Gizmo, and not a Group. In order to use this tool, you need to have this plugin installed.

This makes it fundamentally different from a Group, or a Gizmo, which you could always export to Group if sharing with someone who does not have the Gizmo installed. You cannot export this to a Group, because it is an actual Node in nuke.

If another colleague, or the render farm, does not have this tool installed, then it will error, the same as a missing gizmo.

Luckily, the Image result of the STMap_BBox is identical to that of the native STMap node. So in a worst case scenario, you can always swap it out for a regular STMap and still get the same result, or write a python script to replace all STMap_BBox nodes with STMap nodes.

OS and Nuke Version dependencies

Nuke C++ plugins are compiled plugins. Meaning it turned readable human code into machine code. Compilers convert the code into the C++ plugin file.

However, each OS (Mac, Linux, Windows) converts C++ into a different filetype.

And every Nuke Minor version, Nuke 16.0 vs Nuke 16.1 for example, is slightly different and requires a new compile. Internal modules and commands may have moved or been renamed between Nuke versions, and the compiler bakes those paths into the plugin. Meaning using the plugin compiled for Nuke15.v1 with Nuke 16.0 will not work and will error out if the wrong plugin is loaded.

As a result, I created some auto-loader python code, which will correctly identify which plugin to load based on OS and Nuke version. If it cannot find the right OS or Nuke version, then the auto-loader will skip the load, ensuring that Nuke still starts safely.

You do not need to do anything, this is happening under the hood on Nuke start and ensures that the same package can be used anywhere and that the install is minimum, just pointing Nuke to the STMap_BBox folder.

I am currently supporting Mac and Linux, every Nuke Minor version from 15.0+ and will continue to update with each Nuke Minor version.

I am hoping to get my hands on a windows setup to compile on Windows machines as well. If there is enough demand, please reach out to me or create an issue on Github with Windows request and I can try and support it ASAP.


Download

Head to the latest Release page:
https://github.com/CreativeLyons/STMap_BBox-public/releases/latest

Download the STMap_BBox .zip in the Assets:


Install

Have a look at the README.md file that comes in the .zip for install instructions, but I’ll list the same steps below:

The easiest way to install would be to:

1. Download and unzip the .zip folder from the Release page

    2. Drag and Drop the STMap_BBox folder into your ~/.nuke/ folder

    3. Mac Users will need to unlock permissions so Mac can allows use of the C++ plugin. It’s a classic Mac permissions block since this is some C++ code from Github. Once the STMap_BBox folder is in your .nuke folder, open a terminal window and run this command:

    xattr -cr ~/.nuke/STMap_BBox

    If you installed it somewhere else, you can replace that last path with where ever you have put the folder. You can also simply drag a folder into the terminal window and it will enter the folder path for you.

    4. Add this line to ~/.nuke/init.py (create the file if missing):

    nuke.pluginAddPath("./STMap_BBox")

    Alternatively, point to wherever on the server you placed the STMap_BBox folder:

    nuke.pluginAddPath("/Replace/With/Path/To/Your/STMap_BBox")

    5. Restart Nuke. Find the node under Nodes → Transform → STMap_BBox, or type STMap_BBox in the Tab search.


    Thanks for trying the tool, I hope that it optimizes your lens distortion workflows.

    If you have any issues or requests, you can create a github issue here:

    https://github.com/CreativeLyons/STMap_BBox-public/issues

    Precomp Switcher v1.0

    I’m excited to release Precomp Switcher v1.0, a Nuke plugin that speeds up your precomp workflow.

    Features:

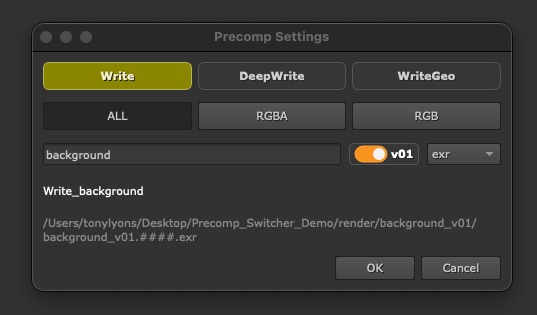

    • A quick panel to create your precomp setup

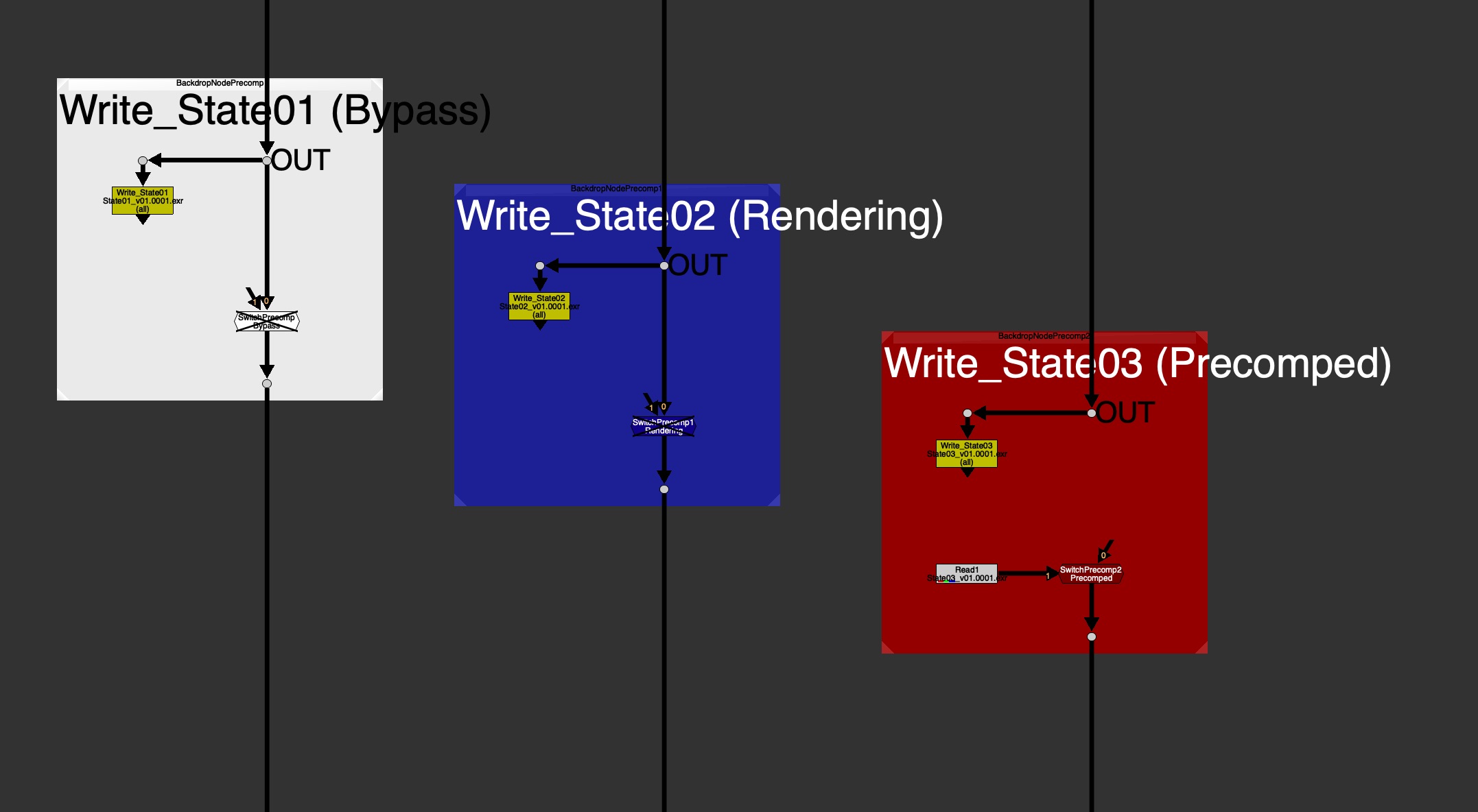

    • A color-coded Backdrop shows the precomp state at a glance:
    • White – Bypass
    • Blue – Rendering
    • Red – Precomped
    • Toggle between Precomped and Bypass simply by disabling the Switch node.
    • User Guide for everyday Artists & Developer Guide for how to hook it up with pipeline.
    • Optional Feature for Localizing your precomps, for folks working with large files over a network.

    Why use it?

    • Consistency. Every precomp in every script looks and behaves the same.
    • Readability. Tile color and label tell you at a glance whether a precomp is live, mid-render, or rendered.
    • Speed. One hotkey to build, one to render, one to read back and flip/toggle.
    • Pipeline-friendly. If your studio has its own render command, custom Write Node, custom Read Node or read-from-write tool, a TD can configure this tool to use those hooks to their own pipeline commands, instead of native Nuke ones.

    Hotkeys

    • Shift+W to create the Write, Switch, and Backdrop precomp setup
    • F7 to render
    • Alt+R to read back and toggle

    Links

    Github Repo:
    https://github.com/CreativeLyons/PrecompSwitcher

    Latest Release:
    https://github.com/CreativeLyons/PrecompSwitcher/releases/latest

    Nuke Survival Toolkit Release v2.2.0

    Every once in a while, you take on an ambitious project, bite off more than you can chew, and learn a lot along the way… 😅

    I’m excited to release Nuke Survival Toolkit v2.2.0, now featuring a brand-new Online Wiki, replacing the previous Google Docs setup. Each tool now has its own dedicated page with embedded videos and images, along with a fully functional search bar.

    For folks working in internet-restricted environments, there’s also a downloadable Offline Wiki (~70MB). It mirrors the online version (minus video embeds), so you can browse everything locally without internet access. The PDF documentation is now generated directly from the wiki, ensuring it always stays in sync.

    Converting the Google Docs to a full wiki, packaging an efficient offline version, and maintaining a dynamic PDF pipeline was… a challenge. But it is now a well oiled system that is easy to update. This process also gave me a deeper appreciation for the effort behind maintaining high-quality documentation, credits, references, and educational resources. Kudos to all you Wiki warriors out there.

    Hope the new wiki helps you find tools faster or discover ones you didn’t know were there.


    New Documentation System
    – Live Online Wiki (replacing the previous Google Docs)
    – Dedicated page for each tool
    – Embedded videos, GIFs, images, and links
    – Full search functionality for quickly finding tools
    – Downloadable Offline Wiki (~70MB) for offline use (no video embeds)
    – PDF documentation generated directly from the wiki (always in sync)
    – Updated NST menu documentation launcher
    – Auto mode: Online Wiki → Offline Wiki → PDF

    What else is new since v2.1.0?
    – 27 new tools added
    – 44 tool updates, including a Nuke 13+ python2 to python3 sweep
    – Nuke 16 & PySide 6 compatibility for all tools needing upgrade
    – New CardToTrack v9 release supported (works on Nuke 16)
    – 11 targeted issue fixes & cleanup: ie. improved Windows path handling

    Link to the new NST Release page:
    https://github.com/CreativeLyons/NukeSurvivalToolkit_publicRelease/releases/tag/v2.2.0

    Link to the New Online Wiki Documentation:
    https://creativelyons.github.io/NukeSurvivalToolkit_Wiki/

    Link to both Github Repos:
    NST: https://github.com/CreativeLyons/NukeSurvivalToolkit_publicRelease
    NST Wiki: https://github.com/CreativeLyons/NukeSurvivalToolkit_Wiki

    CG Compositing Series – 4.1 LightGroup / AOV Paradox

    In this final installment of the CG Compositing Series, we focus on using LightGroups and Material AOVs together in a single workflow, and solving the paradox that come with it.

    Why do these 2 rebuild methods seem to clash?

    We cover the following topics in the video and in this blog post:

    • The complications of splitting LightGroups per Material AOV
    • A method for transferring changes between setups using a Difference Map
    • The pitfalls of using Subtraction and the advantages of using Division
    • A comparison of math operations: Add/Subtract vs Multiply/Divide
    • A stress test of the Division-based setup
    • Template layout strategies and rules to keep your rebuilds stable
    • Carrying changes across the template from the 1st rebuild to the passes of the 2nd for the most interactive user experience.
    • Ideas and techniques you can apply in your own CG Templates.

    SlideShow PDF Download here:


    What is the LightGroup / Material AOV Paradox?

    Why do these two rebuild methods seem to clash?

    We basically have 2 setups that are incompatible with one another, making it hard to use them at the same time.

    Both the Light Groups and the Material AOV Rebuilds are different ways to Slice the CG Beauty Render

    But this is not the full story, for a better overview of the situation, we need to look at the same image from a slightly different angle.

    The Passes of the Opposite Rebuild actually exist within each slice of the Current Rebuild

    They are fully embedded and intertwined in one another.


    The Paradox:
    How do you make changes to both Rebuilds if the Passes are already embedded within each other?


    Possible Solutions to the Paradox:

    Let’s explore some possible solutions to this problem.


    Split Pass Workflow: Split out Material AOVs per LightGroup

    Download the larger LightGroup-per-AOV split Render here or at the bottom of this blog

    Junkyard_LightGroup_AOV_Split.exr ( 223 mb )

    We could decide to brute force split out each pass even further, into Material AOVs per Light Group.

    When we rebuild it you could either prioritize it as Larger buckets of Material AOVs, made up of each LightGroup.

    Or prioritize it as larger buckets of LightGroups, made up of each Material AOV, like a mini-Beauty Rebuild per light.

    There are many problems with this workflow however:

    There are many more layers and channels rendered, making file sizes larger, and nuke slower to process and more difficult to work with.

    There is often a need to clone or expression link grades and color correction changes across different parts of the setup in order to affect all the lights at once, or all the material AOVs at once. Creating a clone or expression hellscape.

    There are also cases where you will see a master control and expression links, so the user does not get lost in the linked/cloned nodes.

    You may also see the entire setup in a Group Node, to hide it and only expose necessary controls.

    Compositing is never that straight foward however and we should not be compositing from within a Group node. We often need to pull masks, rotos, elements, etc from other parts of the main node graph, and if everything is in a Group, it becomes difficult to get that information inside of the group to use.

    Most Compositing should happen exposed in the main node graph to avoid any headache, and not hidden away in a Group that a user needs to jump in and out of.

    This extra split workflow has many cons, let’s look at some other workflows to solve our paradox problem.


    Transferring Changes from 1st Setup to the 2nd Setup

    Another workflow is trying to capture and transfer the changes from the 1st Rebuild Setup to the 2nd Rebuild Setup. This is the basic idea of the workflow at its core:

    An example of this technique could be illustrated from Machine Learning or Generative AI workflows, and is called Style Transfer.

    In the below image, I start with an image of a bearded man. I have 2 separate models that are making changes. The first might be for facial expressions and shaves, and the second is for applying makeup. On the left side, I make a change to make the man beardless, and with an angry expression. On the right side, I’ve told it to apply clown makeup. If we want to combine the 2, I might want to package the “Beardless Angry” Changes, and apply that over to the clown makeup side. My result would be a Beardless Angry Clown.

    This is a silly example but illustrates the workflow we want to use in Nuke to capture our first changes and apply them to our second changes for a combined change.

    But how can we capture and package those changes from the first setup?


    Subtractive (Absolute) Difference Method

    • We can find the difference between the 1st Rebuild and the Beauty Render using Subtraction
    • Temporarily store the changes in a subtractive difference map
    • Apply the 1st changes to the 2nd Rebuild Setup

    Taking one of your rebuilds, either Material AOV comp or LightGroup comp, and subtracting the original Beauty Render will give you the Subtractive Difference Map, as seen below:

    Subtractive Difference Map

    The image itself is a map of positive and negative values, telling us how much we would need to add/subtract from the Beauty Render in order to get the result of our changed Rebuild.

    • Values of Zero will have No Change
    • Positive Values will get Brighter
    • Negative Value will get Darker

    Let’s get into some equations to help us understand the math behind this workflow.

    First let’s define a helpful math symbol: Delta, which stands for “The Change” or “The Difference”

    First we’ll do a basic inverse operation with subtraction and addition.

    Material AOVs – Beauty = Difference

    Beauty + Difference = Material AOVs

    Instead of adding the difference back to the Beauty, let’s swap the Beauty out for the result of our LightGroups comp. So I am adding the difference of the Material AOVs comp onto the LightGroups comp, to hopefully get the combined changes.

    It’s important to realize that we do not need to start with the Material AOVs and transfer to the LightGroups, but we could also just as easily start with the LightGroups and transfer those changes over to the Material AOVs, it’s a matter of preference, but the result will be the same.

    Let’s try this in nuke, by taking the Material AOVs output, minusing the Beauty Render, and then applying our subtractive

    The resulting image kind of works, but is also full of problems with odd colors and seemingly black hole areas

    Subtractive Method Failure

    Let’s take a look at what is going wrong with the Subtraction Difference Method.


    Subtractive (Absolute) Difference Problems

    • The Subtractive Difference Map represents Absolute Values
    • This tells you the exact values to add/subtract to bring the Beauty Render to the Changed Rebuild
    • The Subtractive Method (Absolute) only works well if you Brighten values in the Rebuilds, or only Darken them slightly

    Brightening both setups will be fine, as the results will only increase.

    Darkening both setups however, runs the risk of going below zero and into negative values when the change is applied to the 2nd Setup. The darker the changes on both sides, the higher the risk of negative values.

    Remember that the Rebuild passes are embedded in each other’s setups. If we darken some lights, and then darken the Specular, since the specular also contains all the lights, we are essentially subtracting those light groups twice and getting negative values.

    So if this Subtractive Difference Method is giving us issues, let’s look at any other ways to get the difference map.


    Division (Relative) Difference Method

    Let’s ask ourselves: How can I go from 8 to 4?

    Obviously we could subtract 4, and 8 – 4 = 4

    But if we had a new, lower number, such as 2, and we also minused 4, we’d get -2.

    We could also divide 8 by 2, therefore halving it, and we’d also arrive at 4.

    Then trying to divide 2 by 2 will get us 1, it is also halved.

    The number of change from 8 was -4 but from 2 it was only -1. This number of change is Relative to the input number. It is a ratio or a percent of what the start number is, so it adapts to our input.

    Of course, this could also be represented as multiplication. divide by 2 is the same as multiply by 0.5

    So instead of trying subtraction and addition, let’s now try divide and multiply

    The Result is a Division Difference Map that looks a lot different than our Subtraction Difference Map

    Division Difference Map

    Now let’s multiply this with our 2nd Rebuild, the LightGroups side:

    Side Note: Since Nuke’s Merge node does not have a native B / A operation, if you ever wanted to swap the A and B inputs and have the disable default to the Rebuild instead of the Beauty (for Templating reasons), then you would need a special MergeDivide.

    Feel free to download this tool here: MergeDivide.nk

    The Result from applying the Division Difference below looks a lot better than the Subtraction Method, and there are no longer any Negative Values in the image.

    Division Difference Method

    So why does this suddenly work? And what is going on with that Division Difference Map?


    Division (Relative) Difference Map

    This new Difference map is answering a different question than the subtraction difference map was:

    • How much do we need to Multiply the Beauty Render by in order to end up with the Rebuild Output?
    • What Percent do I need to increase or decrease this Beauty Render by to get to the Rebuild Output

    Multiplication / Percentage will not get us Negative values

    That Division Difference map appears all white, but in fact, it has values over 1, superwhites, that we cannot see by default. let’s darken it a bit so we can see the pixels over the value of 1.

    Darkened Division Difference Map – for Visualization

    Let’s break it down:

    • Values above 1 will get brighter
    • Values between 0 and 1 will get darker
    • Value of 1 means No Change

    So any number multiplied by 1, is itself, and does not change. That is why the map is mostly white.

    Multiplication can also be represented as a percentage:

    So we could express the pixels on this map in a percentage:

    So our new map will be increasing or decreasing our 2nd Rebuild input by a specific percent.

    Let’s go over the math equation to see how it works. Once again we have our inverse operation, Starting and returning to Material AOVs using division and multiplication:

    Then we are swapping out the Beauty Render, in the second step, with our LightGroup output. So we are applying our Division Difference Changes on top of the LightGroup Changes.

    It’s worth mentioning again, that just like before, it does not matter which order you divide or multiply the Rebuilds, Material AOV 1st & LightGroup 2nd or LightGroup 1st & Material AOV 2nd, will yield the same result.


    So why does the Division Difference work so much better than the Subtractive Difference?

    Below is a animation showing the difference between the add/subtract and multiply / percentage.

    Notice that the subtraction will go past zero towards negative values, while multiplication will only approach zero or be zero, but never go negative. We don’t really ever see a negative percent.

    Going back to that embedded layers image. This time, instead of subtracting the pass on both sides, we are multiplying to zero on both sides, but we don’t run into negatives, because if you multiply something by zero twice, it is still only zero. 4 x 0 x 0 = 0. So we are actually still safe.

    I encourage you to stress test this Division Difference Method with your own renders and unique cases. You are able to push the limits to an extreme level without noticing anything breaking or feeling off.


    Template Layout Options

    We have to decide if we want to set up our template with our 2 Rebuilds:

    • side by side
    • top to bottom

    We also need to decide which Rebuild will be first and which will be second, the first will be the one captured in the change map. So either Material AOVs or LightGroups.

    We could also go right to left instead of left to right, on the side by side, if we so choose:

    Here are some possible template layouts in the node graph:

    One thing that is a bit annoying is that while using these Templates, and making changes, we can really only see the effect of our changes by looking at the very bottom, after the changes are combined and both setups are taken into consideration. Is there any way for us to have a more interactive experience, by seeing some of the changes affecting different parts of the Template. Let’s explore that idea.


    Interactive Changes throughout the Template

    Instead of considering the Rebuild as 1 whole output, like our Beauty, we need to remember that it is made up of individual pieces, like our piechart from before. The passes were split and adjusted and added all up to equal the Beauty.

    So instead of multiplying the Division Difference Change Map to the output of the 2nd Rebuild, we could multiply it to each individual pass separately. This would give us the same result once we add all the passes together.

    Let’s explore the math of this, it becomes a little easier to understand.

    If we split the Output into smaller components, we can apply the multiply to each component and then add them up after. This would be the same result as us just multiplying the whole.

    The Equation for use would look something like this (Delta being the Difference, and T being Total Changes):

    In nuke, we can set this up in our templates. I am just going to stick to Top to Bottom Templates for the example, as it’s a little easier to set up and understand.

    It’s SUPER IMPORTANT to realize that we are only capturing the changes from the 1st setup, and applying them to the 2nd setup. There is no way to make the changes of the 2nd look back around and apply to the first, because you would create a paradoxical change loop: Changing the 1st, which changes the 2nd, which changes the 1st, which changes the 2nd, which changes the 1st…. you get the idea.

    So that decision of the flow of your Template, and which setup you want to see the changes reflected in, is very important to decide as you build your CG Template

    So, let’s say that we have our Material AOVs 1st, and we are applying the changes to the LightGroups. We’ll need to multiply each lightgroup pass with the division map

    And if we started with LightGroups, we’d need to multiply the 2nd setup Material AOVs with the division difference map.

    base LightGroups
    LightGroups with Material AOV Changes applied per pass

    or if you were to use the LightGroups first, you could transfer your changes to each individual Material AOV:

    base Material AOVs
    Material AOVs with LightGroup Changes applied per pass

    The result is an interactive user experience where you we can see our changes trickle down throughout our template and influence all the downstream passes. This can really help visualize what is happening at a local level.


    Rules and Caveats

    • Material AOVs passes must add up to equal Beauty
    • Light Groups passes must also add up to equal Beauty
    • Do not do color corrections that introduce negative values (saturation)
    • Treat the CG Template as a glorified Color Correction
    • On the 1st Rebuild side (The Captured Change side) avoid:
      • Transforms / Warps
      • Filters: Blur, Defocus, Median, Glow
      • Chromatic Aberration
      • Replacing / Merging a totally different image on top
        • Texture changes should happen at the albedo level

    You want to try and consider the entire CG Template as one big color correction. The pixel is being tracked all the way through the setup, in the change map, and comparing back to the beauty and applying to the second rebuild. Things like Transforms or filters, are changing the possible, or blending pixels together, and will cause artifacting because the Change map is not able to really capture the changes properly. Also some filters are a post effect, and really should not be adjusted after use, such as a Glow.

    Example of Glowing 1st rebuild and viewing result in 2nd rebuild:

    glow problems

    Transforms or moving pixels around, will also not allow the setup to track the pixel the whole way through and leave to various artifacting, as shown below:

    transform problems

    You will want to apply your filters and transforms either after the CG Template, or possible only on the 2nd Rebuild section. So basically avoiding the division change map, which is unable to capture it, and only applying those operations afterwards.


    Template Examples

    I will be providing you examples of Side by Side, Top to Bottom, and Interactive Change Templates for each renderer: Blender, RedShift, Arnold, and Octane.

    All Template Examples: Blender, RedShift, Arnold, Octane. Side by Side, Top to Bottom, Interactive

    Template Ideas and Inspiration

    There are just way too many variations for me to provide in every situation. However I can give some example ideas or inspirations that I have seen and worked with that you could consider implementing into your CG Template if it fits with your style of comping.

    • Managing Div-Map with Exposed Pipes
    • Using Stamps or Hidden inputs for Div-Map
    • Storing Div-Map in a Layer / Channel for later use
    • Grouping Sections for less clutter
    • Template Controller, pick which parts are in use:
      • Beauty
      • Material AOVs Only
      • LightGroups Only
      • Combined LG / AOV
    • Reversed Direction

    Conclusion

    This Division Difference Multiplication Technique used to solve the LightGroup / AOV Paradox is fairly unknown at the moment. There seemed to be a huge black hole of knowledge out there on this subject. I’d like to give a huge shout out to Ernest Dios for being one of the true masterminds behind this technique, and for first introducing me to it. Also a big thank you to Alexey Kuchinski for all of his mentorship.

    My hope with this whole CG Compositing Series was to equip you with the knowledge of every piece of the CG Template. What all the passes are, Why they are important, How to use them, Where to put them and how to organize them to Rebuild the Beauty, and When to adjust them for specific notes.

    And of course, the final piece of the puzzle. How to combine it all and use the LightGroups and Material AOVs together in an elegant way. To help you push your CG Renders to their absolute limits, without the need for a rerender.

    I hope you got value out of this video, or out of any video in the CG Compositing Series.

    If I could ask one small favor from you, it would be to help share this video, or this blog, to compositing or VFX friends and colleagues. Whether it’s in a group chat, work chat, discord, linkedin post, I believe this knowledge is too important to keep secret. I would love to see this amazing workflow become more commonplace in the world of Compositing.

    Thank you so much for all of your support over the years. It’s be a long journey since the first CG Compositing Series Intro video, and we are finally at the end…for now. I hope it was worth the wait.

    Until next time.


    Downloads

    Nuke scripts

    1 Demo nk script, and 1 Template & Idea Proposal nk script, 2 total:

    CG_Comp_Series_4_1_LG_AOV_Paradox_Demo_Scripts.zip ( 164 kb )

    Tools

    MergeDivide tool that was demoed:

    MergeDivide.nk


    Junkyard

    I’ve created a new Junkyard Render specifically for this Light Groups video, please download the Render and the Cryptomatte file here in order to relink it in the Demo nuke script:

    Download Render files here:
    Junkyard_LightGroups.zip ( 115 mb )

    Junkyard_LightGroup_AOV_Split.exr ( 223 mb )


    Fruitbowl

    If you haven’t downloaded the FruitBowl Renders already yet, you can do so now:

    You can Choose to either download all 3 FruitBowls at once:
    FruitBowl_All_Renders_Redshift_Arnold_Octane.zip (1.61 GB)

    Or Each FruitBowl Render Individually for faster downloads:

    FruitBowl_Redshift_Render.zip (569.1 MB)

    FruitBowl_Arnold_Render.zip (562.8 MB)

    FruitBowl_Octane_Render.zip (515.4 MB)

    The project files and the Renders are separate downloads, so if you have already downloaded 1.1 What and Why files or the Fruitbowl Renders, there are a couple ways to combine them to work.

    1. Either add the .nk script to the previous package (in the folder above SourceImages, with the other .nk scripts)
    2. Or simply drop the Render files into the SourceImages folder of the project folder

    CG Compositing Series – 3.1 Light Groups

    In this video we move away from the Material AOVs and cover an equally important Beauty Rebuild using Light Group renders. This is another set of passes you can render to adjust the lights in your render, that all add up to the Beauty Render.

    SlideShow PDF Download here:


    What are Light Groups?

    • A Light Group is a render pass of a light (or a set of lights) in the scene, that is rendered in isolation from the rest of the scene’s lighting.
    • All other lights are “off” and only the Light Group’s light is “on” and affecting the scene.
    • All the Light Groups should add together to produce the full Lighting in the Scene; They all plus and build back the beauty render.

    Importance of Light Groups

    • Creating good looking CG is not just about the materials of the objects, but also the Lights in the scene, that interact with those materials, and tell a story.
    • Different Light types can drive the aesthetic, style, realism, or story of your CG render.
    • Understanding lighting basics is important for being an effective CG compositor.

    Types of Light Groups

    Key – Primary Light Source
    Fill – Lift and soften Shadows
    Rim – Enhancing silhouette & Separation


    Practical – Light Sources serving a purpose and illuminating the scene (they are part of the environment)

    https://www.soundstripe.com/blogs/how-to-master-the-art-of-practical-lighting
    https://www.therookies.co/projects/20802

    Interactive – Dynamic Lights Changing over time


    Light Groups for Compositors

    A Compositor is usually focused on 2 main aspects of the Lights using Light Groups:

    1. Exposure – How Bright the Lights are
    2. Color Temperature – What Color (Hue) the Lights are

    Exposure

    • Exposure is referring to how bright the image is.
    • Exposure is usually measured in “stops” of light.
    • Stops are relative, meaning they are based on the current image you are looking at.
    • +1 stop higher is 2x as bright. Doubled
    • -1 stop lower is 1/2 as bright. Halved
    https://www.john-rowell.com/blog/2017/3/27/what-is-a-stop-of-light
    https://www.john-rowell.com/blog/2017/3/27/what-is-a-stop-of-light
    https://www.photographytalk.com/exposure-compensation-explained
    https://www.diyphotography.net/what-is-middle-grey-and-why-does-it-even-matter/

    Exposure Triangle in Photography

    The Exposure Triangle refers to 3 settings on a camera that help balance the Exposure / Brightness of the Image. If you increase the brightness of 1 of the 3 sides by 1 stop (double the brightness), then you need to choose 1 of the other 2 sides to lower the brightness by 1 stop (half the brightness) in order to maintain the same exposure level of the photo.

    Only Aperture and Shutter Speed are referring to the amount of physical light reaching the sensor through the lens. ISO refers to the amplification (multiplication) of the analog signal before it gets converted digitally.

    https://www.photopills.com/articles/exposure-photography-guide
    https://www.photopills.com/articles/exposure-photography-guide
    https://petapixel.com/exposure-triangle/
    https://petapixel.com/exposure-triangle/

    Check out this AMAZING website that lets you play around with the settings and balance the image brightness in a very interactive way. I loved playing around with the sliders, it is such a cool idea.

    http://www.andersenimages.com/tutorials/exposure-simulator/


    Aperture

    https://www.photopills.com/articles/exposure-photography-guide
    https://www.studiobinder.com/blog/what-is-the-exposure-triangle-explained/
    • How big the opening of the lens is.
    • The larger the lens opening, the more light gets through, the brighter the image.
    • Also the bigger opening results in a shallower Depth of Field, or smaller zone of focus. This results in larger Bokeh and separation of foreground and background.
    https://robynsphotographyacademy.com/understanding-aperture/

    Shutter Speed

    https://www.studiobinder.com/blog/what-is-the-exposure-triangle-explained/
    • How much time the opening of the lens remains open for, measured in fractions of a second.
    • Leaving the lens open for longer, lets in more light and brightens the image.
    • Longer exposure times will result in more motion blur, depending on the shutter speed and speed of the object being shot.
    https://isblens.weebly.com/shutter-speed.html
    https://snapsnapsnap.photos/a-beginners-guide-for-manual-controls-in-iphone-photography-shutter-speed/
    https://snapsnapsnap.photos/a-beginners-guide-for-manual-controls-in-iphone-photography-shutter-speed/

    ISO

    • ISO used to refer to the sensitivity level of film stock in film cameras.
    • ISO stands for International Organization of Standards
    • The higher the film stock ISO, the grainier the image appeared, due the to the materials being used for the lower intensity film stock.
    • With digital cameras, sensors have only one sensitivity level.
    • Digital ISO refers to the Amplification (intensity multiplier) of the analog signal before it gets converted to digital data.
    https://skylum.com/how-to/what-is-iso-in-photography
    https://www.alanranger.com/blog-on-photography/what-is-iso-in-photography

    Digital ISO is a lot like a volume knob on a radio. If the signal is weak (aka there is not much light making it to the sensor) then increasing the volume will make the sound louder (make the image brighter) but will also increase the static, or digital noise (sometimes referred to as grain).

    pexels.com photo by githirinick
    Back to the Future
    https://www.photopills.com/articles/exposure-photography-guide

    F-Number Meaning

    • F-number is focal length divided by the aperture diameter (size of the opening of the hole).
    • The “f/” notation is a convenient way to say “some fraction of the focal length”
    • They are called f-stops because each stop, or notch in the settings, halves or doubles the light admitted into the camera.
    https://www.photopills.com/articles/exposure-photography-guide
    https://www.originalartphotography.co.uk/2015/03/what-is-a-stop-photography-jargon/

    Doubling the Area of a Circle

    https://www.chilimath.com/lessons/geometry-lessons/area-of-a-circle/
    • Doubling the Amount of Light requires doubling the Area of the Circle (lens opening)
    • Doubling the Radius does not double the Area, it actually quadruples it. 22 = 4 , but (2 x 2)2 = 42= 16
    • What do we need to multiply the Radius by to get double the Area?

    The Square Root of 2 roughly equals ≈ 1.4142

    Doubling the Area of the circle requires us to multiply it by roughly 1.4, which is why the numbers on the stops are written as they are

    https://www.photopills.com/articles/exposure-photography-guide
    https://www.photopills.com/articles/exposure-photography-guide

    Exposure in nuke

    For dealing with Exposure in nuke, I would recommend using either the Exposure Node, the Multiply Node, or the Grade node’s Gain or Multiply knobs

    In the Exposure node you could change the stops directly by changing the mode to stops
    You can also just multiply by 2, 4, 8, or enter 1/2, 1/4, 1/8 in the Multiply slider of a Multiply or Grade node.
    With a normal Multiply, we can use an expression to be able to enter our stop number
    pow(2, x) where x is the stop number, the same as the Exposure node is using.


    Temperature (Color)

    https://www.rmd-leuchten.de/en/color-temperature/
    • Temperature describes the hue, or color of the light, measured in Kelvin (K).
    • Heated objects emit light photons as they heat up, in a process called Black-Body Radiation.
    • As objects get hotter they emit different frequency wavelengths of light, shifting from red to orange to white to blue.
    https://lednetwork.ca/blogs/the-led-network-blog/what-is-colour-temperature-why-is-it-important-for-lighting
    https://gvmled.com/what-is-the-color-temperature-in-lighting/
    https://rbw.com/blog/understanding-color-temperature-of-led-lighting

    ColorKelvin (K)Celsius (°C)Fahrenheit (°F)
    Red1000–2000 K700–1700 °C1300–3100 °F

    ColorKelvin (K)Celsius (°C)Fahrenheit (°F)
    OrangeYellow 2000–3500 K1700–3200 °C3100–5800 °F
    White3500–6500 K3200–6200 °C5800–11200 °F

    ColorKelvin (K)Celsius (°C)Fahrenheit (°F)
    Blue6500+ K6200+ °C11200+ °F
    https://www.autoevolution.com/news/staged-combustion-engine-fires-up-for-the-first-time-spits-out-350000-hp-in-one-second-235304.html

    pexels.com photo by CottonBro
    pexels.com photo by ClickerHappy

    Color Grading in Nuke

    I tend to use either an Exposure node for Luminance and a Grade node’s Multiply knob for Color

    Or I use a single Grade node, using Gain for Exposure changes, and Multiply for color changes

    I also prefer to change my color using the Temperature and Magenta settings of the Color Panel, which allow intuitive corrections which also giving fine control.

    This is also an important way to separate your Luminance correction from your color correction, by making sure the Intensity stays around 1 and Luminance is preserved while changing color.

    Adjusting Light Groups with Exposure (Gain or Multiply) for Intensity / Luminance, and a Multiply for Color, are my preferred way to Color Grade my Light Groups

    beauty
    Light Group Tweaks

    Saturation of Light Groups

    Remember that Light Groups are like individual Beauty Renders with only 1 light at a time. So you cannot simply desaturate a light group if you want to desaturate the light color.

    You would either have to separate the Lighting information from the material information, using a color pass. But even then you may encounter some issues and artifacting.

    Or, you can simply shift the colors of the light group to a more neutral color


    Destructive vs Non Destructive workflows

    You can use Gamma corrections, but be mindful that it requires an exact order of operations reversal in order to fully restore the original image. So it can be difficult to undo later if your corrections start to stack up

    ColorCorrect Nodes can be especially Destructive because they are impossible to reverse, due to the fact that it is pulling a luminance key on it’s input to determine the shadows, midtones, and highlights.

    This locks the input of the ColorCorrect, because if you make a change above, you are affecting the result of the ColorCorrect

    It means that you either need to keep going, adding more nodes and changes on top, or perhaps start over.

    Image each ColorCorrect is dependent on all of the previous ColorCorrects, this can cause a ripple, or chain reaction affect and be altering the results of all or any of the ColorCorrects if they are altered.

    Of course in the end of the day, use whatever you need to do to get the shot done! But be mindful that you might be tangling a knot that you cannot untie later.

    My advice would be try using Exposure and Multiply Changes for Luminance and Color first, and see how far you can get, and save the fancy ColorCorrects as a last resort, when you need to get the extra mile to completing the shot.


    Demo Nuke Script

    Download the Demo Nuke Script here:
    CG_Compositing_Series_LightGroups_Demo_v07.nk

    In the Demo Nuke script, you will find AOV and Light Group Rebuilds for:

    • Blender (Junkyard Scene)
    • Arnold (Fruitbowl)
    • Octane (Fruitbowl)
    • Redshift (Fruitbowl)

    You will also find sections demoing:

    • Exposure
    • A junkyard light group rebuild that I have tweaked with Exposure and Multiply as an example
    • Saturation demo dealing with saturation of Light Groups
    • Section breaking down Destructive and non-destructive workflows in nuke.

    Downloads

    Junkyard

    I’ve created a new Junkyard Render specifically for this Light Groups video, please download the Render and the Cryptomatte file here in order to relink it in the Demo nuke script:

    Download Render files here:
    Junkyard_LightGroups.zip ( 115 mb )


    Fruitbowl

    If you haven’t downloaded the FruitBowl Renders already yet, you can do so now:

    You can Choose to either download all 3 FruitBowls at once:
    FruitBowl_All_Renders_Redshift_Arnold_Octane.zip (1.61 GB)

    Or Each FruitBowl Render Individually for faster downloads:

    FruitBowl_Redshift_Render.zip (569.1 MB)

    FruitBowl_Arnold_Render.zip (562.8 MB)

    FruitBowl_Octane_Render.zip (515.4 MB)

    The project files and the Renders are separate downloads, so if you have already downloaded 1.1 What and Why files or the Fruitbowl Renders, there are a couple ways to combine them to work.

    1. Either add the .nk script to the previous package (in the folder above SourceImages, with the other .nk scripts)
    2. Or simply drop the Render files into the SourceImages folder of the project folder

    References

    Below are some links to the various research I used to create this video:

    First, big shout out again to the Exposure Triangle Simulator website:

    Exposure Triangle

    http://www.andersenimages.com/tutorials/exposure-simulator/

    http://photography-mapped.com/interact.html

    https://www.adorama.com/alc/9-online-camera-simulators-to-help-your-photography-skill/


    3D Rendering Light Groups

    https://www.blog.poliigon.com/blog/4-simple-steps-to-set-up-light-groups-in-blender

    https://help.maxon.net/r3d/katana/en-us/Content/html/Light+Group+AOVs.html#LightGroupAOVs-LightGroupsinDetail

    https://www.premiumbeat.com/blog/the-role-of-light-groups-in-arnold-for-maya/

    YoutTube – Light Groups in Arnold for Maya | Francesco Furneri

    https://garagefarm.net/blog/blender-light-groups

    Julius Ihle – HDR Prepper Nuke Gizmo for IBL (Updated!)


    Photography

    https://www.canonoutsideofauto.ca/

    https://www.john-rowell.com/blog/2017/3/27/what-is-a-stop-of-light

    https://www.photopills.com/articles/exposure-photography-guide

    https://www.studiobinder.com/blog/what-is-iso/

    https://photographylife.com/what-is-iso-in-photography

    https://photo.stackexchange.com/questions/35136/is-it-better-to-shoot-with-a-higher-iso-or-use-lower-iso-and-raise-the-exposure

    https://theauroraguy.com/blogs/blog/iso-is-not-what-you-think-it-is-what-is-iso-really

    https://photo.stackexchange.com/questions/52163/digital-iso-vs-post-exposure-correction

    https://www.alanranger.com/blog-on-photography/what-is-iso-in-photography

    https://skylum.com/how-to/what-is-iso-in-photography

    https://petapixel.com/exposure-triangle/

    https://www.outdoorphotographyschool.com/aperture-and-f-stops-explained/

    https://www.exposureguide.com/focusing-basics/

    https://manualmodebasics.weebly.com/shutter-speed.html

    https://digitalphotographylive.com/shutter-speed/

    https://isblens.weebly.com/shutter-speed.html

    https://snapsnapsnap.photos/a-beginners-guide-for-manual-controls-in-iphone-photography-shutter-speed/

    https://www.diyphotography.net/what-is-middle-grey-and-why-does-it-even-matter/

    https://silentpeakphoto.com/photography-tips/stops-in-photography-explained/


    3 Point Lighting

    https://lightingpixels.blogspot.com/2013/01/tutorials-does-three-point-lighting-suck.html

    https://academyofanimatedart.com/understanding-the-basics-of-3-point-lighting/

    Youtube – CINEMATIC LIGHTING: 3 Point Lights | Kriscoart

    https://www.linkedin.com/pulse/what-crucial-role-lighting-3d-animation-incredimate-jhkac/

    https://www.soundstripe.com/blogs/how-to-master-the-art-of-practical-lighting

    BEST Resource you will ever find on the subject of CG Cinematography and Lighting – Onine Book:

    https://chrisbrejon.com/cg-cinematography/


    Area of Circle

    https://www.chilimath.com/lessons/geometry-lessons/area-of-a-circle

    https://mathmonks.com/circle/area-of-a-circle

    YoutTube – Video 878.1 – How do you double the area of a circle? – Practice | Chau Tu

    Youtube – Area of a circle | Perimeter, area, and volume | Geometry | Khan Academy

    Youtube – If I double the diameter of a circle, what happens to the perimeter and area? | Wendy Maths

    Youtube – Circle Area (classic visual proof) | Mathematical Visual Proofs


    Color Temperature

    https://www.studiobinder.com/blog/what-is-color-temperature-definition/

    https://nofilmschool.com/what-is-color-temperature-and-how-should-filmmakers-utilize-it

    https://www.therookies.co/projects/76980

    https://step1dezignsblog.wordpress.com/2017/10/06/how-to-choose-the-right-color-temperature-for-your-led-lighting-applications/

    https://www.wonderopolis.org/wonder/what-is-the-color-of-fire

    CG Compositing Series – 2.5 Material AOVs – Refractions & Reflections


    Refraction & Reflection Passes (Exceptions)

    In this video we aim to understanding the problem with refraction (transmission) and reflections (indirect specular) explore potential solutions. The problem with Indirect Specular (Mirror Reflections) and Transmission (or Refraction) passes is they reflect or refract the entire beauty of the environment, locking that information into 1 pass. There often seems there is not much we can do as compositors to separate those passes further.


    Here we have a nightmare scenario from a AOV rebuild point of view: A glass jar full of balloons, that is also reflected in a mirror surface. Everything in the mirror Reflection shows up only in the Specular Indirect Pass, and everything seen through the glass jar shows up only in the Transmission (refraction) Pass.

    We notice as well that objects that end up in the Transmission (Refraction) pass are missing from the Diffuse Pass.

    Mirror Reflections, for example ground plane reflections for our subjects, are also limited to the Indirect Specular pass:


    What is Transparency?

    • Transparency is the ability to see – through an object or surface to what’s behind
    • It’s as if the object or material is ignored or nonexistent and does not have to do with Light interacting with the material.
    • The light passing through is not Distorted (Refract), nor does Scatter or change Color (which could be the case with Translucency or Transmission)

    Transparency basically has only 1 setting: Amount – or “How much can i see through this”

    YouTube: Opacity Maps – PixPlant

    What is Transmission?

    • Transmission is the passing of light completely through a material
    • Refractive, Transparent, and Translucent materials all transmit light, but Opaque materials do not.
    • If light is not transmitted, it may have been reflected (specular) or absorbed.
    https://abnercabuang.wordpress.com/2017/11/19/reflection-refraction-transmission-and-absorption-of-light/

    Transmission can sometimes cause the light to inherit a color tint as it passes through and interacts with the material.  Think of colored liquids or tinted glass.

    https://documentation.3delightcloud.com/display/SFRP/3Delight+Glass

    What is Refraction?

    • Refraction is the change in direction and speed of a light ray as it travels through or “Transmits” through different mediums, ie. from Air to Glass or Water or Plastic

    The 2 more important characteristics of Refraction are:

    1.) The Light passes through the material

    2.) The Light changes direction

    • The amount of distortion, “bending”, or change in direction of a light’s path while passing through the material, depends on factor’s like:
    • Thickness of the material, Angle of View, and the material’s Index of Refraction
    https://lightcolourvision.org/dictionary/definition/index-of-refraction/
    https://en.wikipedia.org/wiki/Refraction
    Photo by Jill Burrow – Pexels
    drinking-straw-in-a-glass-of-water-refraction_congerdesign_Pixabay

    Refractions vs Transmission?

    • Transmission is only referring to Light passing through an object
    • Refraction is requiring the light to have changed direction, and to pass through
    • The render pass is doing both things, so some Render Engines decided to call the pass Transmission, because it’s referring to light passing through the material
    • Other renderers call the pass Refraction, referring to the Change of Direction, “bending” or distortion of the light
    • Both terms in this case are referring to the same phenomena, just focusing on different aspects of the light’s behaviour
    • Transmission might even be a more accurate label, because technically a material could have a Refraction index of 1.0, meaning no refraction/distortion is occurring, but the light is still Transmitting.
    • All Refractions require Transmission
    • Not all Transmissions require Refraction

    Why is Light Redirected during Refraction?

    • Light travels through different mediums at different speeds, depending on the density and make up of the medium.
    • Examples of Mediums: Vacuum (space), Air, Glass, Plastic, Water, gases, etc.
    • The change of light speed while passing from 1 medium into the next, causes the light to change direction when entering the 2nd medium.
    https://stoplearn.com/refraction-of-light/

    Light Wave “Turning” or “Bending”

    Light is a Wave:

    One side of the wave hits the new medium and slows down first, turning/bending/redirecting the light wave towards a new direction.

    https://en.wikipedia.org/wiki/Refraction
    https://www.telescope-optics.net/reflection.htm
    https://blog.soton.ac.uk/soundwaves/wave-interaction/3-refraction/

    Color Light Wave Frequencies

    Remember that Different Frequencies of Light Spectrum show up as different colors

    Different frequencies of light refract at slightly different angles, causing the colors to separate. This is what happens with Color Prisms.

    https://en.wikipedia.org/wiki/Dispersive_prism
    https://en.wikipedia.org/wiki/Refraction
    https://sciencenotes.org/refraction-definition-refractive-index-snells-law/

    Refraction / Reflection in Rainbows

    A Combination of this Refraction Color Separation and Reflections within water droplets is what allows us to see Rainbows.

    https://www.quora.com/Why-is-high-humidity-required-for-the-formation-of-rainbow
    https://www.quora.com/Are-specific-conditions-needed-for-Rainbow-to-occur
    https://www.quora.com/If-light-travel-at-the-same-speed-in-rainbows-as-it-travels-in-air-would-we-still-have-rainbows

    Index of Refraction

    • Different materials have different densities and make ups and will cause light waves to move through at different speeds
    • This is measured with an Index of Refraction, which measures how fast light moves through that medium, and therefore how much it refracts
    • An Index of 1.0 is light’s speed in a Vacuum – or no change in direction
    • Higher numbers mean light travels through the medium slower and light bends more
    https://micro.magnet.fsu.edu/optics/lightandcolor/refraction.html
    https://www.scratchapixel.com/lessons/3d-basic-rendering/introduction-to-shading/reflection-refraction-fresnel.html

    In CG, this Index of Refraction is an attribute setting on Materials that will make it more or less refractive

    https://documentation.3delightcloud.com/display/SFRP/3Delight+Glass

    Refraction Re-Entering Original Medium

    • When the Light goes from a fast medium, to slower medium, and back into the fast medium on the other side, it has another refraction turn
    • This time, instead of one side of the light wavelength slowing first, one side speeds up first
    • If the exit angle is the same as the entrance angle, it will reverse the lightwave back to the original direction, and is parallel to the orginal light direction, just offset
    https://www.quora.com/Will-the-angle-of-refraction-of-a-ray-of-light-passing-from-glass-to-air-be-equal-to-the-angle-of-incidence-greater-than-the-angle-of-incidence-smaller-than-the-angle-of-incidence-or-45-What-are-the-reasons-for-your
    https://en.wikipedia.org/wiki/Refraction
    https://micro.magnet.fsu.edu/optics/lightandcolor/refraction.html

    Refraction Angle

    • The Angle that the light wave hits the surface also matters
    • If the light hits the material exactly perpendicular to the surface normal then it will pass through and the light does not bend at all
    • The more extreme the angle, the more refraction. This is why light appears most warped at the edges of curved surfaces.
    https://www.hanlin.com/archives/695184
    Pexels – Photo by Burak The Weekender

    This is exactly what causes lens distortion to be more extreme at the edges of frame vs the center of frame

    https://en.wikipedia.org/wiki/Fisheye_lens
    https://en.wikipedia.org/wiki/Fisheye_lens
    https://help.shopmoment.com/article/181-superfish-distortion-correction

    Chromatic Aberration

    Combining the more extreme distortion with the Color separation is why we get Chromatic Abberation more in the edges of frame as well.

    https://en.wikipedia.org/wiki/Chromatic_aberration
    https://en.wikipedia.org/wiki/Chromatic_aberration
    http://www.tlc-systems.com/artzen2-0047.htm

    Caustics

    Light Refracting through complex shaped objects, changes direction, and concentrate towards certain areas more than others and create Caustics.

    Pexels – Photo by Maria Orlova
    https://en.wikipedia.org/wiki/Caustic_(optics)

    Complex shapes create complex caustics, and moving surfaces, like water, create dynamic and organic moving Caustic patterns.


    What is Translucency?

    • Transmissive materials have a Roughness or Glossiness setting that works in the same way as it does on Specular Highlights
    • Increasing the Transmission Roughness causes the light rays traveling through to scatter / “diffuse” or blur together.  Think of Frosted Glass or Plastics.
    • This effect of “Blurring” or Scattering the Transmitted light is called Translucency
    https://medium.com/@stevesi/on-bigco-leaks-transparency-and-disclosure-6d7812e227a0
    https://sitelikeet.life/product_details/15285792.html
    https://slideplayer.com/slide/8349700/ – Light and Color Presentation – by Elijah Dixon

    Roughness Blurs Everything Together

    Specular Roughness Setting:

    https://documentation.3delightcloud.com/display/SFRP/3Delight+Glass

    Transmission Roughness Setting:

    https://documentation.3delightcloud.com/display/SFRP/3Delight+Glass

    Recap

    Transparency – You can see through to BG, as if the material or object is not visible or ignored

    Transmission – Light allowed to pass through the surface / material

    Refraction – Light changes direction as it passes through the material / surface

    Translucency – Light passes through material and gets scattered / blurred


    Virtual Images / Worlds

    When looking at fully reflective and refractive objects, we are seeing a distorted representation of our surroundings.

    https://www.scratchapixel.com/lessons/3d-basic-rendering/introduction-to-shading/reflection-refraction-fresnel.html
    https://www.scratchapixel.com/lessons/3d-basic-rendering/introduction-to-shading/reflection-refraction-fresnel.html
    https://en.wikipedia.org/wiki/Refraction

    Concave/Convex Reflections

    When looking at curved mirrors, it is very obvious that the object we are looking at, is a redirected and distorted view of our surrounding environment

    https://www.simply.science/images/content/physics/waves_optics/reflection/Concept_map/Convexconcave_mirrors.html
    https://wbbsesolutions.guru/wbbse-solutions-for-class-10-physical-science-and-environment-chapter-5/

    Convex Reflections

    • With Reflections, light bounces off the material and, depending on the surface shape, changes direction upon reflecting
    • Convex shapes cause the light to Diverge – spread apart
    https://www.shokabo.co.jp/sp_e/optical/labo/lens/lens.htm

    Concave Reflections

    • Concave shapes cause the light to Converge – come together
    https://www.shokabo.co.jp/sp_e/optical/labo/lens/lens.htm

    Concave / Convex Refractions

    When looking at curved glass, or lenses, light that we are looking seeing through the glass, is a redirected and distorted view of our surrounding environment

    photo by betül balcı on pexels
    photo by shukhrat-umarov on pexels

    Concave Refractions

    • With Refractions, light passing through the material and, depending on the surface shape, changes direction upon refracting
    • Concave shapes cause the refracted light to Diverge – spread apart
    https://www.britannica.com/technology/lens-optics

    Convex Refractions

    Convex shapes cause the light to Converge – come together

    https://www.britannica.com/technology/lens-optics

    Looking at them all next to each other, we can see Reflections and Refractions are both re-directing the light rays from another part of the scene. The biggest difference is Reflect = Light Bounces off, Refract = Light passes through.


    There is No Spoon

    photo by chait goli on pexels
    photo by otoniel alvarado on pexels

    There is No Glass Either…

    https://wifflegif.com/gifs/490974-pouring-water-reverses-arrow-gif
    https://www.cleverpatch.com.au/ideas/by-product-type/paper-and-card/refraction-in-action

    Diffuse – Specular – Transmission (New Category)

    Diffuse – All Light Interaction with Material / Object

    Specular – All Surface Reflections (Bounces)

    Transmission – All Pass Through Refractions

    Here is an Example Scene with 1 sided Glass on the left, and 2 sided Glass on the right:

    We can see the Direct Transmission shows the Light Source through only the 1 sided glass, but not the 2 sided glass

    Almost all information in the 2 sided glass is stored in the Indirect Transmission:

    Almost all objects that contain glass in 3D are supposed to be modelled with a thickness, meaning 2 or more sides. So more often than not, your Direct Transmission Pass will be empty and all information will go to the Indirect Transmission. This is also why very often it is not even split up and is just rendered combined as Overall Transmission.


    Recap #2

    • Transmission – Light passes through
    • Refraction – Light redirects.
    • The CG pass could be named either or but is often referring to the same phenomenon.
    • Specular and Transmission are both similar in that they are capturing light redirecting and showing a virtual image of the distorted surroundings
    • Emission is the light source
    • Diffuse describes the object itself
    • Specular Events captures light bouncing off the object’s surface
    • Transmission Events capture light passing through an object.
    • These all get separated into their own categories.
    • Both Specular and Transmission have:
    • A Direct pass that show the first reflection or first transmission of light
    • An Indirect pass showing all subsequent bounces or pass throughs
    • An Albedo Filter (mask)
    • Transmissive surfaces like glass are often modelled with 2 sides
    • Therefore the light usually passes through 2+ sides and ends up in the indirect pass, and the direct Transmission shows up empty
    • Often rendered as just an overall combined Transmission pass, for convenience.

    Incorporating Transmission (Refraction) Into AOV Template

    Since most of the Refraction is in the Indirect, there is no need for space for splitting up and adjusting separate direct and indirect, like we do with the diffuse or spec. I recommend combining and keeping the Transmission Section Slim for Space Saving in the Template. I also recommend the layering to go: Diffuse, Transmission, Specular, Emission, Other. To me this was the clearest Layering.

    I updated the Material AOV Rebuild Templates in the FruitBowl Renders for Arnold, RedShift and Octane incorporating the new Transmission / Refraction Section.

    See the Downloads Section at the bottom for links to the whole nuke scripts for learning and template scripts updated per render engine, arnold, octane, redshift.


    Handling Planar Mirror Reflections

    One approach to rendering Planar Reflections with AOVs is flipping the Camera along the Mirror Plane

    Flipping the Camera along the normal of the Mirror Plane will produce a Virtual camera for you to render the Mirrored Virtual Image from the right perspective

    If your Object is sitting on top of the 3D origin ground plane, this can be as easy as making an Axis Node, Scaling the Y to -1 and plugging your camera Axis Input into this Axis Node.

    This will view your scene from the perspective of your Mirror. In the above image, you can see after flipping the Camera in -Y, the Nuke rendered result is aligned with the rendered indirect Specular pass. We’ll need to do this method in the Render Application on Lighting side, or pass this camera back to the lighter in order to render the reflection with full AOVs.

    Here is the re-rendered Mirror Camera Perspective of the Armored Mech, with full AOVs, matching the original reflection angle:


    What about non-ground plane mirrors?

    For all oriented mirror planes, the same concept applies, you want to flip the world from the pivot point and orientation of that card along it’s normal facing angle. This is easier to do in 3D applications, but can be done in nuke with a little Matrix Inversion.

    I’ve made a tool called MirrorDimension to make this Camera Mirroring super easy. Just stick this node between the Mirror Card in nuke (must have it’s transformations and rotations) and the Camera node. The gizmo is acting as an Axis Node and is just flipping the world along the orientation of the Card input.

    No Settings on the node, just the following instructions:

    1.) Plug in the MirrorCard input to the Card or Axis node you would like to be the mirror.

    – The scale of Card Does not matter as long as the orientation (translation/rotation) are correct.

    – The Card’s +Z access is the front of mirror, point that towards subject / camera. This is the blue Z arrow in 3D viewer.

    2.) Duplicate your Camera, and plug in the “axis” input of this new Camera to the output of this node.

    3.) Your new Camera will be Mirrored according to the plane / card / axis.

    4.) Render using this New Camera Setup to get the mirrored CG output.

    Before MirrorDimension Node – Original Camera Position:

    After Mirror Dimension Node Applied –

    You would either do this in your 3D scene and render the AOVs or pass this camera to a Lighter to render from this mirror perspective.


    Faking Reflections in Comp

    If you suddenly need reflections but have no renders, you can use some of the above techniques to fake your reflections.

    If you have your Geometry of the object, try projecting the rgba onto the geometry, and rendering it in nuke from the mirror dimension:

    If you have no Geometry, but have a Position Pass. Try using a PositionToPoints node, plugged into your render and Position input plugged into your shuffled out Position pass (or select in the dropdown). You can render your rgb 3D point cloud of the object with the mirror camera and fake some reflections. It won’t be perfect, but perhaps in a pinch, it can save your ass and add more realism:

    So the next question becomes, what can we do if it’s not a Planar Reflection? or if it’s multiple planar reflection, or surface is curved, or what about Refractions (Transmission) ?


    Getting Help from Lighters

    There is a serious limit to how much we can do in comp when encountering Indirect Specular or Refraction (Transmission) passes. Many times, if this is something that is a big feature of are shot and requires a lot of comp tweaks, we’ll need some help from our Lighting Department.


    Julius Ihle – Head of Lighting and LookDev at Trixter

    We talk to Julius Ihle – Head of Lighting and LookDev at Trixter for potential Lighting Solutions to these problems.

    Julius is super knowledgeable, and introduces us to Light Path Expressions and Open Shading Language where lighters can help Build Additional AOVs and help us when the situation calls for it.

    Julius is also an online educator and keeps a Lighting Blog discussing exactly these topics, check these tutorials out for more details:

    Julius’ Blog:
    https://julius-ihle.de/?page_id=346


    Light Path Expressions

    Julius’ Tutorial: LPE Quick Tip #1: Light Path Splitting for Transmission
    https://julius-ihle.de/?p=2619

    Here is an illustration of the drawing Julius used to explain how renderers are handling Reflection and Refraction Events

    In a nutshell, the render engine keeps track of the light ray path and all the events that it undertakes on it’s journey from Camera back towards the Light

    Lighters can create new AOVs with custom expressions telling the render engine exactly what parts and what events they want to see in the outputted pass.

    Here is a link to the Light Path Expression community GitHub:
    https://github.com/AcademySoftwareFoundation/OpenShadingLanguage/wiki/OSL-Light-Path-Expressions

    And here is the Arnold User Guide that Julius Mentions in the video to check out for more education:
    https://help.autodesk.com/view/ARNOL/ENU/?guid=arnold_user_guide_ac_output_aovs_ac_expression_aovs_html

    LPE’s are supported by many renderers so check if the one you are using supports them.


    Open Shading Language

    Julius’ Tutorial: Playing with OSL #5: Arnold Reflection Alpha + Utilities
    https://julius-ihle.de/?p=2788

    There are also Shaders that have been written that can Reflect various AOVs, such as Utility passes and Alpha channel so that reflections can be more useful for us in comp. Julius has written his own shader to do just that, download it from GitHub:

    https://github.com/julsVFX/osl


    Downloads:

    If you haven’t downloaded the FruitBowl Renders already yet, you can do so now:

    You can Choose to either download all 3 FruitBowls at once:
    FruitBowl_All_Renders_Redshift_Arnold_Octane.zip (1.61 GB)

    Or Each FruitBowl Render Individually for faster downloads:

    FruitBowl_Redshift_Render.zip (569.1 MB)

    FruitBowl_Arnold_Render.zip (562.8 MB)

    FruitBowl_Octane_Render.zip (515.4 MB)

    The project files and the Renders are separate downloads, so if you have already downloaded 1.1 What and Why files or the Fruitbowl Renders, there are a couple ways to combine them to work.

    1. Either add the .nk script to the previous package (in the folder above SourceImages, with the other .nk scripts)
    2. Or simply drop the Render files into the SourceImages folder of the new 1.2 project folder

    Project Files for this Video:

    Along with the fruitbowl renders above, here are the nuke script and project files from this video, so you can follow along:

    All Nuke Project Files and template scripts:
    CG_Compositing_Series_MaterialAOVs_RefractionsReflections_AllScripts.zip (88 KB)

    Nuke scripts included in the above download, but can downloaded individually are:

    CG_Compositing_Series_2_5_Material_AOVs_RefractionsReflections_DemoScript.nk


    CG_Compositing_Series_2_5_Material_AOVs_ArmorMech_ReflectionsMirror_Demo.nk


    CG_Compositing_Series_2_5_Material_AOVs_Updated_Transmission_Templates.nk


    I have also updated these Individual AOV Rebuild Templates scripts for specific render engines to include a Transmission Section:

    Realistic_AOV_Bebuild_Arnold_Template.nk

    Realistic_AOV_Bebuild_Redshift_Template.nk

    Realistic_AOV_Bebuild_Octane_Template.nk

    Realistic_AOV_Bebuild_Blender_Template.nk


    Glass Balloons (Houdini Solaris)

    GlassBalloons_Renders.zip (2 EXRs – 101.4MB)


    Armor Mech (Rendered in Blender):

    Original model by Numata3D_98 on turbosquid:
    https://www.turbosquid.com/3d-models/3d-attack-mecha-quadpod-1993489

    4 EXR Renders and Geo (for nuke geo projection demo):

    ArmorMech_RendersAndGeo.zip (179.4MB)


    MirrorDimension

    I am linking to the gizmo on the Nuke Survival Toolkit github, where you can download the raw file or copy/paste the RAW source code from your browser into nuke:

    MirrorDimension gizmo

    Or download the .nk file here:
    MirrorDimension.nk

    Or on Nukepedia:

    https://www.nukepedia.com/gizmos/3d/mirrordimension


    Blender JunkYard Scene:

    Scene from https://www.blender.org/download/demo-files/

    JunkShop_v01.exr (144.7MB )


    Blender ClassRoom Scene:

    Scene from https://www.blender.org/download/demo-files/

    3 Render Files:

    BlenderClassRoom_All_Renders.zip (213.6MB)


    VRay Room Render:

    Vray Room – Can be downloaded from this website, look for “download example scene” (36.6MB):

    https://www.chaos.com/blog/how-to-use-cryptomatte-render-elements-in-v-ray-for-sketchup


    Since I am using Stamps in the script, all renders can be swapped out at the top of the script where the “SourceImages” Backdrop is, and the rest of the script will get populated correctly.


    Slide show PDF

    Here is a PDF version of my slideshow in case you would like to save for future research or review:


    References / Research


    Light Path Expression Doc:
    Github Wiki: OSL Light Path Expressions

    Arnold Light Path Expression Help and Examples:
    Arnold Help: Light Path Expression AOVs – Arnold User Guide

    Julius Ihle Blog
    Julius Ihle’s Github page : julsVFX/osl
    Playing with OSL #5: Arnold Reflection Alpha + Utilities
    LPE Quick Tip #1: Light Path Splitting for Transmission


    Websites:

    Refraction Wikipedia

    Transparency_and_translucency – Wikipedia

    https://notes.thatother.dev/physics/refraction

    https://help.maxon.net/r3d/cinema/en-us/Content/html/Integrated+AOVs.html

    https://www.scratchapixel.com/lessons/3d-basic-rendering/introduction-to-shading/reflection-refraction-fresnel.html

    https://abnercabuang.wordpress.com/2017/11/19/reflection-refraction-transmission-and-absorption-of-light

    https://study.com/learn/lesson/transmission-light-wave-examples.html

    Basics of creating glass materials in Corona renderer and 3Ds Max

    V-Ray Materials

    3Delight Glass – Storage for referenced pages – 3DL Docs

    https://macdesignstudio.wordpress.com/tag/reflection

    Light Pipe Design: How TIR & Refraction Come into Play

    Light and color. – ppt video online download

    On BigCo Leaks: Transparency and disclosure

    Can You See Through Me? | Lesson Plan

    https://wbbsesolutions.guru/wbbse-solutions-for-class-10-physical-science-and-environment-chapter-5

    FAQ/Combining 3D Passes – VFXPedia

    Refraction – Definition, Refractive Index, Snell’s Law

    The Physics Behind Rainbow Formation

    Refraction | Sound Waves

    Refraction Of Light – 2023

    https://www.geocities.ws/rmackrell509/4thSpring.html

    What are the uses of refraction in our daily life?

    What is the Index of Refraction? Measurement, Definition & More –

    Autodesk – arnold – Help

    View topic – Help understanding Refraction, SSS and Transmission passes?

    PPT – The Basics of Refraction PowerPoint Presentation, free download – ID:2558034

    Molecular Expressions: Science, Optics, and You: Light and Color – Refraction of Light

    https://slideplayer.com/slide/16831983

    https://www.researchgate.net/figure/Distortions-of-the-light-field-generated-by-refractive-a-and-reflective-b-convex_fig1_308768656

    https://global.canon/en/technology/s_labo/light/003/02.html

    Delivering VR in Perfect Focus With Nanostructure Meta-lenses

    https://osa.magnet.fsu.edu/teachersparents/articles/lensesgeometricaloptics.html

    https://www.simply.science/images/content/physics/waves_optics/reflection/Concept_map/Convexconcave_mirrors.html

    What is the difference between Translucency and Transparency?

    https://www.linkedin.com/pulse/transparency-vs-translucency-whats-difference-between-archie-blake-3acne

    Transparent vs Translucent


    YouTube Links:

    Light Absorption, Reflection, and Transmission

    How is Light Absorbed, Reflected and Refracted

    Why does light bend when it enters glass?

    Refraction of Light

    Reflection, Refraction and Absorption

    Opacity Maps – PixPlant

    Refractive index of water

    How To Demonstrate Light Bending or Refraction

    How Lenses Function (CanonOfficial)

    Refraction Explained

    Compositing/Render layers in Blender

    CG Compositing Series – 2.4 Material AOVs – Albedo & RAW Lighting


    Albedo & RAW Lighting (Complex) Passes

    In this tutorial, we go further down the levels of complexity into the most complex category, which includes Albedo and RAW Lighting. These are the smallest components of AOVS, the building blocks, and unveil how lights, textures, and materials come together to produce the beauty render.


    What is Albedo?

    • An Albedo Map is the base color or texture map that defines either the diffuse color or specular tint of the surface.
    • Remember that in Physically Based Rendering (PBR) depending on whether a material is Metallic or Dielectric (non metallic), determines whether the albedo color is used as Diffuse Color or Specular Color.
    • It knows what to use the albedo for based off of a black and white metallic map
    https://meshlogic.github.io/posts/blender/materials/nodes-pbr-basic-shader/

    What’s the difference between Albedo and Diffuse?

    • Diffuse contains lighting and shading information such as highlights, shadow and light color.  It’s object’s color / texture in the lit scene.
    • An Albedo Map is basically the object’s texture as it would appear under uniform lighting, without the influence of shadows or highlights.
    https://www.cgdirector.com/albedo-map/
    https://bryanray.name/2015/05/24/blackmagic-fusion-the-texture-node/

    Other names for Albedo

    • Texture
    • Color
    • Base Color
    • Diffuse Map
    • RAW Diffuse Color
    • Diffuse Filter

    Common terms:

    • “Map”
    • “Filter”

    What is RAW Lighting?

    • RAW Lighting is the pure lighting information of the scene, without any specular, object colors, or textures.
    • A pass that describes how light is affecting in the scene.
    • This multiplied with the Albedo makes up the Diffuse Pass.
    RAW Lighting Pass – Fruitbowl Render

    How are they combined?

    Albedo and RAW Lighting are always multiplied together, not plussed

    Diffuse = Albedo * RAW Lighting

    https://bryanray.name/2015/05/24/blackmagic-fusion-the-texture-node/

    What is RAW Specular and Specular Filter?

    The RAW Specular pass is that objects in the scene would look like if they had a 100% reflective chrome shader on. It renders everything uniformly reflective.

    Specular Filter is like a mask or a albedo multiplier, that limits the visibility of the RAW specular reflective pass to certain areas. The thought process is: Might as well render everything reflective, and then decide where and how much it is needed.

    Just like the albedo and the RAW Lighting, RAW Specular and Specular Filter are multiplied together to form the final Specular pass

    Specular = RAW Specular * Specular Filter


    What is RAW Reflection and Reflection Filter?

    RAW Reflection and Reflection filter is essentially the same thing at RAW Specular and Specular filter. You might see this term depending on the renderer. Sometimes Specular is referring to Direct Specular and Reflection is referring to Indirect Specular.

    The more important take away is you want pair the “RAW” pass with it’s “Filter” or “Albedo” pass. They get combined and multiplied together to equal the final pass

    Reflection = RAW Reflection * Reflection Filter


    RAW Direct Diffuse & RAW Indirect Diffuse

    Just like the normal Diffuse pass, RAW Lighting passes can also be split into Direct and Indirect Lighting. So you can end up with the RAW Direct Lighting and the RAW Indirect Lighting. Both passes are using the same Diffuse Albedo, so it is only the lighting that is split, not the albedo.

    Total RAW Diffuse  = RAW Direct Diffuse + RAW Indirect Diffuse


    RAW Direct Specular & RAW Indirect Specular

    And just like the Diffuse RAW passes, we can also break up the RAW Specular passes into RAW Direct Specular and RAW Indirect Specular.

    Again both Direct and Indirect Specular will use the same Specular Filter pass.

    Total RAW Specular  = RAW Direct Specular + RAW Indirect Specular


    Diffuse Equation

    Knowing the diffuse equation will help us understand how it is built, and more importantly, the math behind splitting the Diffuse pass into it’s individual components of Albedo and RAW Lighting. Let’s go over a basic equation and reinforce some math concepts:

    x = Albedo
    y = RAW Light
    Diffuse = ( Albedo * RAW Light )
    Diffuse = ( x * y )

    In math, certain operations cancel each other out. Just like Subtraction cancels out Addition, Division cancels out Multiplication

    ( x + y ) - y = x
    ( x * y ) ÷ y = x

    We can take the Diffuse pass, and dividing by the component we do not want, we can get the component we do want. 

    What that means is if you have the Diffuse pass and 1 other component, albedo or RAW Lighting, we can always generate the remaining missing pass.


    x = Albedo
    y = RAW Light

    Diffuse = ( Albedo * RAW Light )
    Diffuse = ( x * y )

    ( x * y ) ÷ y = x
    ( x * y ) ÷ x = y

    Diffuse ÷ Albedo = RAW Light
    Diffuse ÷ RAW Light = Albedo

    Division Problems

    You can divide 0 by any number and you get the result of 0. But if you try to do the reverse, you run into a classic math problem. You cannot divide by 0, the result is undefined… Not possible. 

    0 ÷ x = 0
    x ÷ 0 = undefined

    This can cause serious problems in nuke when dividing, and we need to be careful.


    Using Expression node to test math in nuke

    If we use an expression node we can enter the following equation:

    0/r
    0/g
    0/b
    0/a

    The nuke Expression node has some predefined variable for using the channels. So it will carry out this math on a per pixel basis for each channel.

    r = red channel
    g = green channel
    b = green channel
    a = alpha channel

    we can see that once we start dividing by 0 value pixels, we are getting issues. Nuke’s answer for an undefined result is nan pixels

    nan stands for “Not A Number”

    inf stands for Infinity


    Testing for nan or inf pixels

    We can use another expression node to write a little tcl expression that will show 1.0 (white) for any illegal value pixels. If it’s a normal number, it will display at 0.0 or black. This can easily and visibly test if we are having “problem pixels” in our image such as nan and inf

    isnan() tests for nan (not a number) pixels. You need to enter which channel you want to check inside of the parenthesis, for example isnan(g) and it will display 1.0 for nan values and 0.0 for normal values

    isinf() tests for infinity value pixels. You need to enter which channel you want to check inside of the parenthesis, for example isinf(g) and it will display 1.0 for inf values and 0.0 for normal values

    We can just add them together to get a full mapping of “illegal values” to warn us

    isnan(r) + isinf(r)
    isnan(g) + isinf(g)
    isnan(b) + isinf(b)
    isnan(a) + isinf(a)

    So dividing by 0 in nuke can give you illegal values. Luckily, the Merge(divide) operation in the Merge node avoids these issues. It has built in protections so that 0/0 = 0 and any other number divided by 0 is bypassed, or skipped, and it does nothing. it will just show you in the A input value and not do any math at all.

    There is a limitation to the Merge node however. There is only 1 operation for divide, and that is A/B

    We know that when we disable nodes in nuke, it defaults to the B input. But if we switch the inputs, we do not get the same result. Meaning we are locked in to our inputs based on whatever image we need to divide by the other image.

    So there is no B/A operation, we’ll need to recreate it ourselves


    MergeExpression Node

    We can use a MergeExpression node, which is basically a combination of a Merge node and an Expression no, in fact the properties look identical to an Expression node.

    The Merge Expression has access to the same variables at the normal expression, namely the r,g,b,a variables representing the different channels:

    r = red channel
    g = green channel
    b = green channel
    a = alpha channel

    But the MergeExpression also has 2 inputs, and we can choose what input we are sourcing from in our equations with capital letters A and B

    A = A input
    B = B input

    Because we need to specify which red channel we are grabbing from, A or B red channel, we need to be more specific. Therefore:

    Ar = A input red channel
    Bg = B input green channel

    So we specify which input first and then the channel we want.

    So now we can do a simple equation of B input divided by A input:

    Br/Ar
    Bg/Ag
    Bb/Ab
    Ba/Aa

    Fixing the MergeExpression

    Unfortunately, the MergeExpression is pure math, and does not have the built in protections that the normal Merge node does when it comes to dividing. So if we end up dividing by 0 using the MergeExpression, we will end up with nan and inf pixel values. And that is very dangerous, because this will break the image, as you cannot do further math with those values, they get corrupted.

    But it’s ok, we can implement the fix ourselves, so that we can have safe values just like the Merge node

    The solution is to enter a little tcl expression into the node

    Ar == 0 ? Br : Br/Ar
    Ag == 0 ? Bg : Bg/Ag
    Ab == 0 ? Bb : Bb/Ab
    Aa == 0 ? Ba : Ba/Aa

    This code basically reads as follows: 

    First we need to check if the A input has 0 values, since that is what we are dividing with. and if we divide with a 0 then we get a problem.

    so the first part is does the A input pixel equal 0 ? if yes, just skip, bypass, and revert to B input pixel. Don’t even do any math. If the A input pixel is not 0, then it will proceed to do the operation B/A and give the result.

    This will fix the issue as all the zero pixels will be skipped. This result is identical to the Merge node set to divide

    Except now it is B/A and when we disable the node, it will revert to the B stream that we want.

    you can just copy/paste the code below into your nuke to get the MergeDivide that I created:


    MergeExpression {
    inputs 2
    expr0 "Ar == 0 ? Br : Br/Ar"
    expr1 "Ag == 0 ? Bg : Bg/Ag"
    expr2 "Ab == 0 ? Bb : Bb/Ab"
    expr3 "Aa == 0 ? Ba : Ba/Aa"
    name MergeDivide
    label "( B / A )"
    note_font_color 0xffffffff
    selected true
    }

    Otherwise you can download the nuke tool here and add it to your toolsets:

    MergeDivide.nk


    Multiply / Divide Concepts

    • Think of Multiply like combining, fusing, mixing, linking, joining, locking
    • Think of Divide like separating, splitting, unlinking, disjoining, unlocking
    • Start with the combined pass
    • Separate with division
    • Change individual component
    • Recombine with multiplication

    How can we use Albedo and RAW Lighting as Compositors?

    1.) The first reason to separate albedo and RAW lighting would be to make an adjustment to only the texture and not the RAW Lighting or vice versa.

    • if you desaturate the diffuse pass, you risk desaturating the lighting and the texture at the same time. but if you wanted to just desaturate the object, but keep the tinting of the lighting, you would need to separate them first

    Here is an example of the Blender Room where we one side desarating the entire diffuse pas, and another where we only desaturated the albedo pass. You will notice on the right side, the light is still warmer and maintaining the warmth of the sunlight. This is what a gray object would look in that environment

    left side: desaturating entire diffuse pass
    right side: desaturating the albedo only

    Here is the same example on the VRAY scene, where you can see the desaturation affecting the bounce lighting:

    left side: desaturating entire diffuse pass
    right side: desaturating the albedo only

    2.)There are many non linear Color Corrections or operations that you might also specifically want to do while these passes are separated, to get better or cleaner results. 

    Whether it is to remove light / shadow from a texture CC, or removing texture info so that you can adjust specific lighting. Operations such as:

    • keying
    • despilling / desaturating
    • gamma
    • ColorCorrect nodes
    • HueCorrects
    • HSV node – to pull color keys

    3.) The next big reason would be to alter or change the texture in the scene and not need to go back to the CG department.

    In this example we replace the picture on the wall with a checkerboard, but it still maintains the lighting of the scene. So you could add noise or blood textures, change billboard ads, etc, and they would still appear to live inside your shot.

    left side: original painting
    right side: replacing the albedo with another image

    Different ways to rebuild AOVs at complex level

    Variation 01:

    Add the direct, indirect, SSS passes together first, generating your diffuse pass. then do a divide / multiply with the albedo pass afterwards at a second step.

    variation 01 rebuild structure

    Variation 02

    We could do the albedo divide multiply on a per pass basis. so basically we are having the RAW direct and RAW indirect split out first. We could do changes to the albedo and return to normal, and then add the direct and indirect and SSS together as a second step.

    variation 02 rebuild structure

    Variation 03

    Similar to variation 02, we do the albedo changes on a per pass basis first. but instead of immediately reverting back to normal, and then plussing the direct, indirect and SSS together. We could instead plus them at the RAW level. The final step would just to multiply the albedo back.

    Basically, variation 02 was 3 divide, 3 multiply and 2 plus

    and variation 03 is 3 divide, 2 plus, and 1 multiply

    variation 03 rebuild structure

    Realistic Proposal for CG AOV Rebuild

    The above setups are more for learning, with labels and backdrops to help break down the workflow and structure.

    Below is the setup that I gravitate towards when settings up CG Templates. I try my best to apply logical flow and convenience. Maximizing organization and flexibility, while still being clean and fast. I have space for albedo / RAW Lighting change, but I keep it off by default and allow to turn it on when needed.

    We see all levels of complexity being implemented:

    Basic : Diffuse, Specular, Emission

    Intermediate: Direct, Indirect, SubSurface Scattering

    Complex: Albedo and RAW Lighting

    Realistic proposal for a CG AOV Rebuild

    You can find these realistic template nuke scripts of these setups for each renderer below in the downloads section. I exported the individual templates for Arnold, Redshift, Octane, and Blender.

    I would recommend waiting for future videos where I will keep expanding on the template and making it more robust. But if you are eager to download and try it out, feel free to give it a try and modify it for your needs. More and better additions will come in the future posts.


    Downloads:

    If you haven’t downloaded the FruitBowl Renders already yet, you can do so now:

    You can Choose to either download all 3 FruitBowls at once:
    FruitBowl_All_Renders_Redshift_Arnold_Octane.zip (1.61 GB)

    Or Each FruitBowl Render Individually for faster downloads:

    FruitBowl_Redshift_Render.zip (569.1 MB)

    FruitBowl_Arnold_Render.zip (562.8 MB)

    FruitBowl_Octane_Render.zip (515.4 MB)

    The project files and the Renders are separate downloads, so if you have already downloaded 1.1 What and Why files or the Fruitbowl Renders, there are a couple ways to combine them to work.

    1. Either add the .nk script to the previous package (in the folder above SourceImages, with the other .nk scripts)
    2. Or simply drop the Render files into the SourceImages folder of the new 1.2 project folder

    Project Files for this Video:

    Along with the fruitbowl renders above, here are the nuke script and project files from this video, so you can follow along:

    All Nuke Project Files and template scripts:
    CG_Compositing_Series_MaterialAOVs_Albedos_RAW_Lighting_nkscripts.zip (155 KB)

    Individual Template scripts for specific renderers:

    Realistic_AOV_Bebuild_Arnold_Template.nk

    Realistic_AOV_Bebuild_Redshift_Template.nk

    Realistic_AOV_Bebuild_Octane_Template.nk

    Realistic_AOV_Bebuild_Blender_Template.nk


    Blender Cube Room Render

    Blender Cube Room Diorama zip ( ~ 70MB)

    original cube diorama blender files from blender demo file site:
    https://www.blender.org/download/demo-files/


    VRay Room Render:

    Vray Room – Can be downloaded from this website, look for “download example scene” (36.6MB):

    https://www.chaos.com/blog/how-to-use-cryptomatte-render-elements-in-v-ray-for-sketchup


    Since I am using Stamps in the script, all renders can be swapped out at the top of the script where the “SourceImages” Backdrop is, and the rest of the script will get populated correctly.


    Slide show PDF

    Here is a PDF version of my slideshow in case you would like to save for future research or review:


    References

    VNTANA – What Are Texture Maps And Why Do They Matter For 3D Fashion?

    A23D – Difference between Albedo and Diffuse map

    cgdirector – What is an Albedo Map and How to use it?

    Youtube – TorQueMoD - WTF are Albedo textures and how do I make them?

    Youtube – Zeracheil – Texture Maps Explained – PBR Workflow

    DIGITAL COMPOSITING IN THE VFX PIPELINE – PDF

    steakunderwater – FAQ/Combining 3D Passes – VFXPedia

    xuan prada – RAW LIGHTING AND ALBEDO AOVS IN ARNOLD

    photoshop essentials – The Overlay Blend Mode in Photoshop

    Bryan Ray – Blackmagic Fusion: The Texture Node

    Youtube – 3DAS – 3ds Max Export Multiple Render Passes (EXR) into Photoshop Extended

    Adam Lindsey – Nuke Notes

    Youtube – Hugo’s Desk – How to use the VRay AOVs in Nuke (render passes)

    CG Compositing Series – 2.3 Material AOVs – Direct, Indirect, SSS


    Direct, Indirect, SSS (intermediate) passes

    In this tutorial, we move down the levels of complexity into the Intermediate category and explore breaking apart diffuse, specular further into Direct Lighting, Indirect Lighting, and SubSurface Scattering


    What is Direct Lighting?

    • Direct Lighting is when the Light Source directly illuminates a surface.  This could be considered the “first bounce” or the first time the light ray is hitting a surface.
    https://en.wikipedia.org/wiki/Global_illumination

    What is Indirect Lighting?

    • Indirect Lighting is all subsequent bounces of the Light.  This can be known as “Bounce Lighting”.  Light is often diffused throughout the scene, and also will pick up some of the surface colors.
    https://en.wikipedia.org/wiki/Global_illumination

    Direct and Indirect Passes as rendered / calculated separately and combined to equal the beauty render. Direct is only the “first bounce” or whatever is directly in view of a light source. Indirect is all bounces after the first hit (excluding the first bounce).

    https://sinmantyx.wordpress.com/2015/03/18/perfect-clamp-1/

    Direct and Indirect Lighting in the real world is used to describe a harsh lightsource, directly hitting a room or object and casting harsh shadows, verses indirect or “bounce lighting” which the light is aimed at a wall or ceiling or bounce card, and diffused throughout the scene, creating a more ambient lit environment.

    https://www.olamled.com/direct-lighting-vs-indirect-lighting-which-is-better/

    Raytracing – Direct Lighting

    https://developer.nvidia.com/discover/ray-tracing
    • Ray tracing is a render calculation used to find Direct Lighting, shadows, and specular highlights.
    • Instead of calculating from the Light Source outwards and every direction in the scene, it saves time by going from the Render Camera backwards, only needing to calculate light rays hitting the camera, and necessary for the creating the final image.
    • It starts from a pixel on the final render and follows the light path until it reflects off or through a surface/material. It then asks “Am I directly illuminated by a light source?” and if so follows the path back to the light source, and determines the distance, intensity, and color of light hitting the surface.
    • If the area is not hit by direct light, it renders as black. This calculation ends after the “first bounce”.
    https://www.dualshockers.com/xbox-one-exclusive-quantum-breaks-wip-screenshots-show-advanced-effects-and-comparisons/

    Global Illumination “GI” – Indirect Lighting

    https://www.scratchapixel.com/lessons/3d-basic-rendering/global-illumination-path-tracing/introduction-global-illumination-path-tracing.html

    • Global Illumination or “GI” involves various techniques to calculate the indirect lighting that occurs when light bounces around in a scene.
    • This process helps to subtly illuminate shadowed areas and contributes to the overall color and intensity of the scene, especially around areas that are hit by direct lighting.
    • There are often many number of bounces allowed, depending on render time and settings. Each bounce inherits color from objects and materials and further distributes light into the scene.
    • The result is a more realistic and natural-looking shot, as it mimics the complex ways light interacts in the real world.

    I mention this amazing Raytracing video from Josh’s Channel that breaks down how raytracing is working in the renderer with amazing visuals. The video itself is amazing, and entertaining. I highly recommend watching the whole video if you want to know about state of the art raytracing techniques.

    The section I clipped from Josh’s video is between 1:24 and 2:14


    Direct + Indirect = Total Lighting

    https://www.dualshockers.com/xbox-one-exclusive-quantum-breaks-wip-screenshots-show-advanced-effects-and-comparisons/
    https://www.dualshockers.com/xbox-one-exclusive-quantum-breaks-wip-screenshots-show-advanced-effects-and-comparisons/

    Image Property of DreamWorks – SIGGRAPH 2010

    Image Property of DreamWorks – SIGGRAPH 2010

    Real Time Raytracing / Global Illumination – RTX Graphics

    Real Time Global Illumination, is becoming the new normal in Real Time Renderers such as Unreal Engine and Unity. More powerful Graphics cards are being upgraded to handle these immense calculations, such as Nvidia’s RTX 3090 or 4090 series graphics cards. These are allowing for real time bounce lighting and reflections, instead of traditionally baked lighting in environments. This all adds significant realism to the scenes and games, and shows just how important this process is to photo realism.


    How can we use Direct & Indirect Passes in Compositing?

    1.) Contrast / Color Correction

    direct / indirect pass decontrast
    • Individual control of the mids/lows and highlights. Gives more flexibility over the color correction in order to increase or decrease contrast and better match CG to plate.

    2.) Filters and FX

    • Adding glow filters to Direct Lighting pass to “punch” the lighting and adding some realistic camera lens fx.  Using direct or indirect lighting passes to drive other FX and filters.

    3.) Denoising CG

    • Indirect passes (and Sub Surface Scattering) are very expensive renders, and often arrive with some unwanted render noise and chattering.  Instead of applying denoise techniques to the whole beauty render, applying denoise to only necessary passes can help preserve details and improve final quality of your renders in comp.

    CG Denoising Techniques in Nuke

    1.) Nuke’s Denoiser

    Nuke Denoise Node

    We can simply use Nuke’s built in denoiser, it is the easiest to test and doesn’t do a bad job after some settings adjustments. No plugin or external tool required

    2.) Neat Video Denoise Plugin

    https://www.neatvideo.com/
    Neat Video is the best denoiser on the market. It is fairly affordable, and chances are your studio already has a license. It can be a bit heavy, I would recommend pre-rendering the results instead of leaving them live in your comp script.

    3.) Motion Vector Denoise

    This technique involves using the Motion Vector Utility pass to distort the previous frame and next frame’s pixels, back into the position of the current frame. Usually you see a 3 frame average, or 5 frame average, (current frame, +2 frames ahead, -2 frames before). 

    It’s also common to use a TemporalMedian Node to help smooth out noise chattering over pixels that are not changing that much frame to frame.

    It’s important to note that we should always try to minimise artifacting and quality loss by isolating degrain techniques to only the problematic render passes, and not every layer or the beauty overall. Typically most of the problematic CG noise is occurring on the Indirect and SubSurface Scattering Passes.

    MotionVector Denoise Technique

    Some Great tools for Motion Vector Denoising:

    Vector Median:

    https://www.nukepedia.com/gizmos/filter/vectormedian

    Deflicker Velocity:

    https://www.nukepedia.com/gizmos/time/deflicker-with-velocity-pass

    I do believe more tools could be made using these techniques and shared with the community. If you want to have a go at using this technique to come up with different tools that reduce grainy CG while minimizing artifacting, I am sure the Nuke community would be grateful!


    Downloads:

    If you haven’t downloaded the FruitBowl Renders already yet, you can do so now:

    You can Choose to either download all 3 FruitBowls at once:
    FruitBowl_All_Renders_Redshift_Arnold_Octane.zip (1.61 GB)

    Or Each FruitBowl Render Individually for faster downloads:

    FruitBowl_Redshift_Render.zip (569.1 MB)

    FruitBowl_Arnold_Render.zip (562.8 MB)

    FruitBowl_Octane_Render.zip (515.4 MB)

    The project files and the Renders are separate downloads, so if you have already downloaded 1.1 What and Why files or the Fruitbowl Renders, there are a couple ways to combine them to work.

    1. Either add the .nk script to the previous package (in the folder above SourceImages, with the other .nk scripts)
    2. Or simply drop the Render files into the SourceImages folder of the new 1.2 project folder

    Project Files for this Video:

    Along with the fruitbowl renders above, here are the nuke script and project files from this video, so you can follow along:

    Nuke Project File:
    CG_Compositing_Series_MaterialAOVs_Intermediate_DirectAndIndirect.nk


    Blender Cube Room Diorama zip ( 3 renders ~ 70MB each, zip file total 204.4MB)

    original cube diorama blender files from blender demo file site:
    https://www.blender.org/download/demo-files/


    Cornell Box noisy Render zip (1.55GB) exr img seq

    Special thanks to Valentin Nicolini for providing the cornell box render

    Please note the render is using ACES colorspace, so you’ll need to set your nuke OCIO settings to ACES to view this render correctly.


    Vray Room – Can be downloaded from this website, look for “download example scene” (36.6MB):

    https://www.chaos.com/blog/how-to-use-cryptomatte-render-elements-in-v-ray-for-sketchup


    Vray Teapots can be downloaded from this website ~35MB:

    https://www.lucamignardi.com/2-5d-relighting-nuke/


    The Foundry spheres examples can be downloaded here:

    https://learn.foundry.com/nuke/content/reference_guide/toolsets_nodes/toolsets_nodes.html


    Since I am using Stamps in the script, all renders can be swapped out at the top of the script where the “SourceImages” Backdrop is, and the rest of the script will get populated correctly


    Finally here is a PDF version of my slideshow in case you would like to save for future research or review:


    Research links:

    https://www.pluralsight.com/blog/film-games/understanding-global-illumination

    https://en.wikipedia.org/wiki/Global_illumination

    https://www.ledyilighting.com/direct-lighting-vs-indirect-lighting/

    https://manual.reallusion.com/iClone_7/ENU/Content/iClone_7/Pro_7.4/27_GI/GI_Basic_Intro_and_Benefits.htm

    https://sinmantyx.wordpress.com/2015/03/18/perfect-clamp-1/

    https://blogs.nvidia.com/blog/direct-indirect-lighting/

    https://lightingdistinctions.com/direct-light-vs-indirect-light-how-to-make-the-most-of-both/

    https://3dheven.com/what-is-global-illumination-and-how-does-it-differ-from-other-rendering-techniques/

    https://cg.informatik.uni-freiburg.de/course_notes/graphics2_09_pathTracing.pdf


    Thank you for all your patience, I’m hoping to publish more tutorials in this series soon.
    Best,
    -Tony

    VFX Nomads Podcast: Episode 001


    Following the well received VFX Community Nuke webinar hosted by the Foundry a couple months ago, link hereJosh Parks, Tony Lyons, and Adrián Pueyo wanted to do more. So we decided to start recording more of our conversations.

    We’re excited to introduce the VFX Nomads Podcast

    Along side us is Senior Compositor/Compositing Supervisor and good friend, Gautama Murcho, who shares his wealth of knowledge, offering insights into his experiences in the VFX Industry.

    The podcast is also on Spotify if you prefer!

    Please Subscribe if you’d like to have new episodes on your radar. Feel free to post comments, feedback, or questions for us to talk about in the future. We hope you enjoy the first episode!

    Why Join the VFX Community? Foundry YouTube Live Panel with Josh Parks and Adrian Pueyo

    I recently had the pleasure of teaming up with Josh Parks and Adrian Pueyo in a Foundry Live Panel event on YouTube Live. We talk about advice for people starting in the industry, getting into teaching, how to keep learning, and the importance of networking and community.

    Josh, Adrian, and I are friends and former colleagues. I couldn’t be more proud and excited to see them evolve in their careers and see their various contributions to the VFX Compositing Community over the years. It was an honor to talk alongside them in what felt like a typical chat we might have if we all met up in person over lunch.


    Back in December we decided to create a space on LinkedIn to be a place for folks to share cool nuke and compositing posts. The LinkedIn news feed can be a little bit of a fire hose of information, and if you don’t save something, it can quickly disappear into the ether. If you’d like to be part of the nuke community there, for articles, tutorials, news, and questions, we’d be happy to have you.

    Foundry Nuke Compositors LinkedIn Group

    I had an absolute blast speaking alongside Adrian and Josh, and in my opinion, it went by too fast! I hope you enjoy the talk and maybe get a little inspiration out of it. I really hope to chat with them again in the future.

    If you’re interested in checking out Josh or Adrian’s websites and courses, here are some links:

    Josh Parks:
    https://www.compositingpro.com/
    https://www.nukecompositingtutorials.com/

    Check out Josh’s newsletter, Training Courses, and Masterclass series

    Adrian Pueyo:
    https://adrianpueyo.com/

    Adrian just released a brand new Python Course tailored for nuke compositors on his new training platform. Check out his courses page for more info.
